1x32 plc splitter Product description

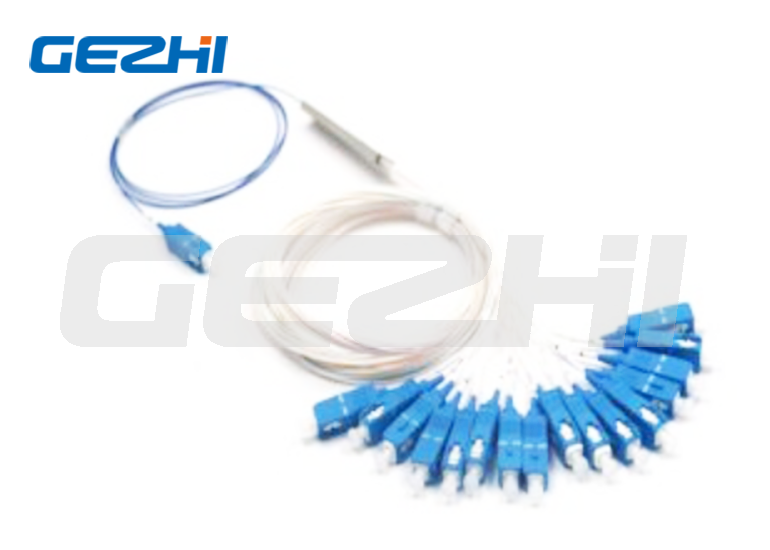

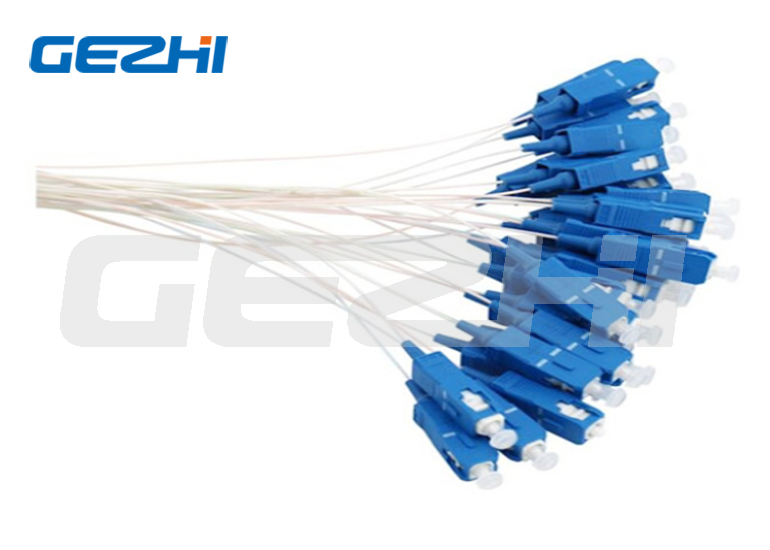

PLC Splitter SC/UPC 1*32 Mini Type fiber optic plc splitter 1x32
plc splitter
PLC Splitter SC/UPC 1*32 Mini Type is 1*32 Sc/Upc Mini Type Optical
Fiber Splitter with Low Insertion Loss Fiber Optical Splitter.
A planar optical wave circuit (PLC) splitter is an optical power
management device manufactured using quartz optical waveguide
technology. It has small size, high reliability, wide operating
wavelength range and good channel-to-channel uniformity and is
widely used in PON networks to realize optical signal power
distribution. We offer a full range of 1×N distributors, tailored
to specific applications. All products meet the requirements of
GR-1209-CORE-2001 and GR-1221-CORE-1999. The product features Low
insertion loss, high isolation, low polarization-dependent loss ,
compact design, good channel-to-channel uniformity, wide operating
wavelength range, high reliability and stability.
PLC Splitter SC/UPC 1*32 Mini Type Features
- Low Insertion loss
- Low PDL
- High Return Loss
- Uniform Power Splitting
- Compact Design
- Wide Operating Wavelength
- Wide Operating Temperature
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
PLC Splitter SC/UPC 1*32 Mini Type Specifications
| Mini type 1*N PLC Splitter Datasheet |
| Operating wavelength (nm) | 1260nm-1650nm |
| Fiber type | G657A1 or customer specified |
| Port configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Insertion loss (dB) (P/S grade) | max | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21 | 23.8/24.2 |
| Loss uniformity (dB) | max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss (dB) | max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
| Return Loss (dB) | min | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Directivity (dB) | min | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1.2 |
| Temperature stability(-40~85 °C)(dB) | max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1.2 |
| Dimension (mm) (L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to South
America(25.00%),Eastern Asia(20.00%),North America(15.00%),Eastern
Europe(10.00%),Western Europe(5.00%),Southeast Asia(5.00%). There
are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
DWDM,CWDM,Filter WDM,AAWG DWDM,Mechanical Optical Switch
4. why should you buy from us not from other suppliers?
Gezhi Photonics is a factory which mainly produce Optical switches,
DWDM, FWDM, CEx Module, CWDM, PatchCord, Optical Transceiver etc.
We are focus on the quality and comply with ISO:9001, Rohs, CE,
Reach, GR-1209-CORE and GR-1221-CORE standard
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,D/P D/A,PayPal,Cash;
Language Spoken:null
