1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm

Gezhi Photonics (Shenzhen) Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm from wholesalers

    Buy cheap 1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm from wholesalers
    • Buy cheap 1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm from wholesalers
    • Buy cheap 1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm from wholesalers
    • Buy cheap 1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm from wholesalers
    • Buy cheap 1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm from wholesalers

    1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm

    Ask Lasest Price
    Brand Name : Gezhi or OEM
    Model Number : 1m (3ft) LC UPC 12
    Certification : CE RoHS,ISO9001
    Price : USD >= 1 pieces $1.89
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Day
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    1m (3ft) LC UPC Fiber Optic Pigtail 12 Fibers OS2 Single Mode Unjacketed Color-Coded PVC (OFNR) 0.9mm

    Product description

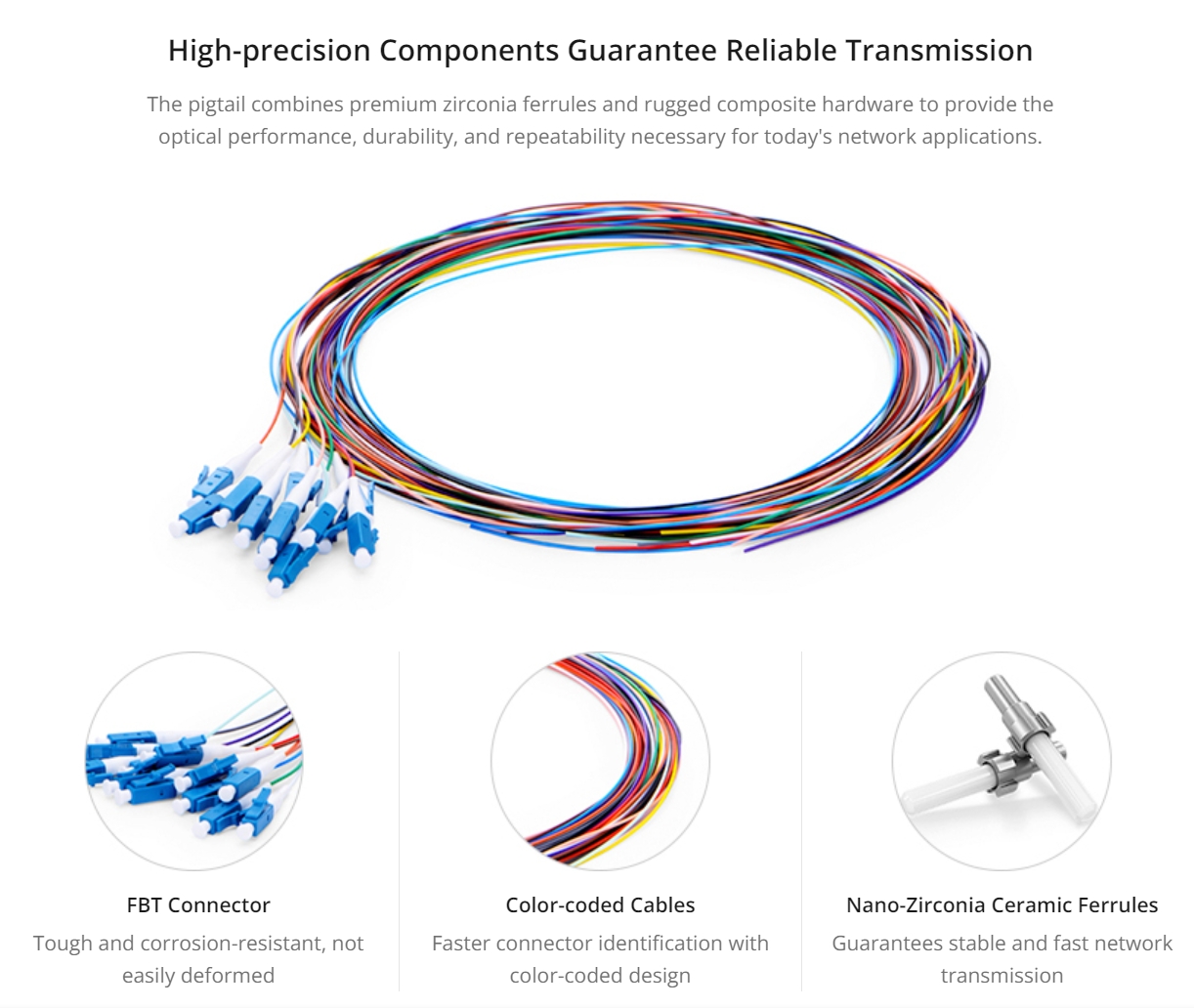

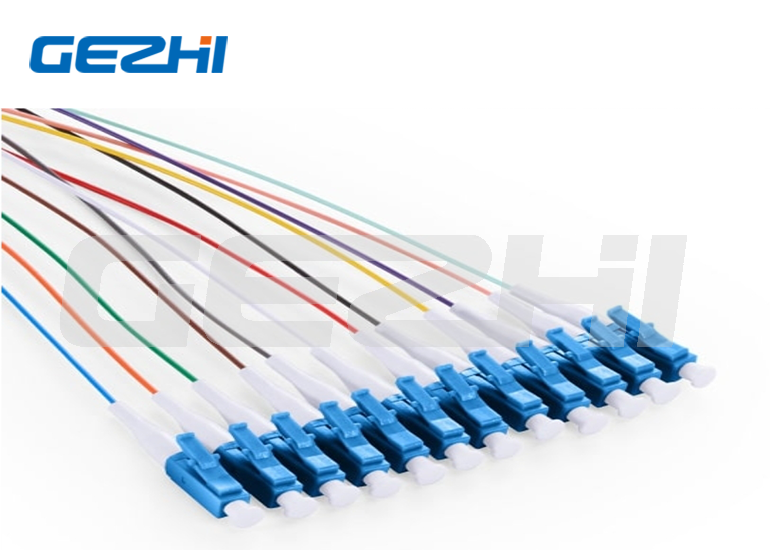

    12 Fibers LC/UPC Single-Mode Color-Coded Fiber Optic Pigtail, Unjacketed


    Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.



    Specifications
    Connector A
    LC
    Connector B
    Unterminated
    Fiber Mode
    9/125 μm
    Fiber Count
    12
    Fiber Grade
    G.657.A1
    Minimum Bend Radius
    10 mm
    Polish Type
    UPC
    Cable Outside Diameter (OD)
    0.9 mm
    Wavelength
    1310 nm/1550 nm
    Pigtail Color
    12-Color
    Insertion Loss
    ≤0.3 dB
    Interchangeability
    ≤0.2 dB
    Return Loss
    ≥50 dB
    Vibration
    ≤0.2 dB
    Operating Temperature
    -40~75°C
    Storage Temperature
    -45~85°C
