Product description

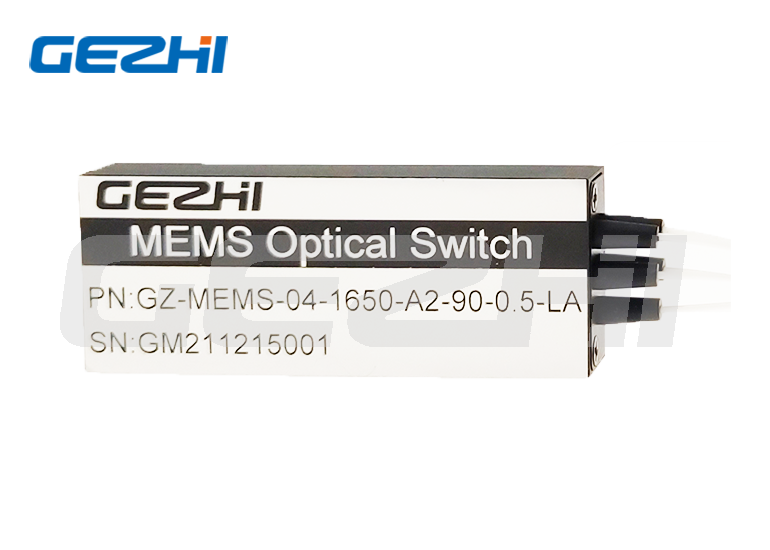

1x4 Fiber MEMS Optical Switches Module Micro-Electro-Mechanical System Switch with SC/UPC Connector

GEZHI Photonics offers MEMS optical switches support wide band wavelength and are compact, fast switching, High stability and with high channel number configuration. Its widely used in MCS, OXC, IODF, OLM, OTDR or fiber sensing etc.

Feature

Low Insertion Loss

PRODUCT SPECIFICATIONS

Parameter	Unit	1x4, 1x8, 1x16 MEMS Optical Switch
Wavelength Range	nm	C-Band	L-Band
Operating Wavelength	nm	1530~1570	1570~1610
Insertion Loss	dB	<1.3	<1.3
Return Loss	dB	≥50
Crosstalk	dB	≥55
Polarization Dependent Loss	dB	≤0.15
WDL	dB	≤0.3
TDL	dB	≤0.3
Repeatability	dB	≤±0.1
Power Supply	V	≤5
Lifetime	times	≥109
Switch Time	ms	≤15
Optical Power	mW	≤500
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
Dimension	mm	M1: 34x24x11 (N≤64, bare fiber) M2: 60x24x11 (N≤16, loose tube) M3: 90x55x12 (16≤N≤64, loose tube) M4: 100x100x12 (64≤N≤144, loose tube) M5: 110x141x12 (144≤N≤256, loose tube)
Note: 1. Within Operating temperature and all SOP. 2. Above spec. is not inlude connector, if add connector, the IL will increase 0.3dB. 3. Customized wavelength is available.

Product packaging

Finished Item

Inner Package

Inner Box

Carton

Test Enviroment

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

Relay Reliable Testing

100% Testing Before Shipment

SIMILAR PRODUCTS

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
