Product description

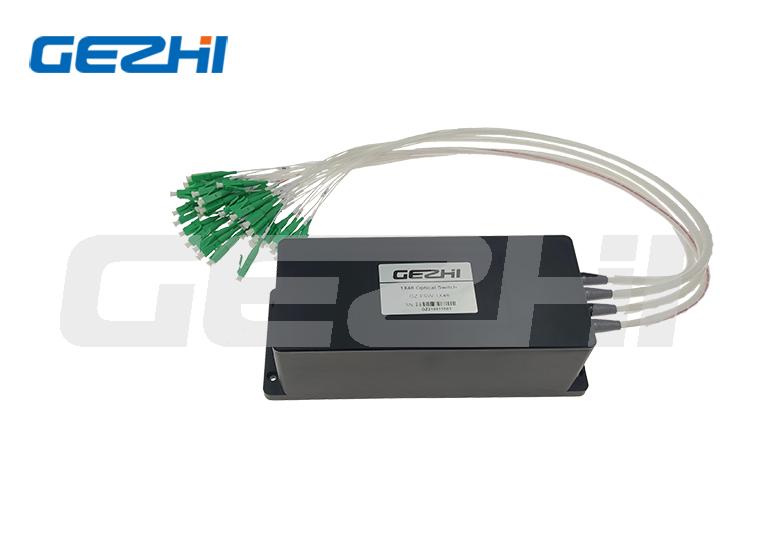

1x48 Optical Switch with mm 62.5/125um Fiber 1550nm Wavelength
GEZHI 1×48 Multi-Channele Fiber Optical switches is a kind of functional component, with the ability of switching optical route.
In optical fiber transmission system, it is used for multi light source/ detector selection, multi-channel fiber monitoring, and
ptical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component
test,outdoor cable test and multi-spot optical sensors monitoring system.
Feature
Low Insertion LossMore Than 128 Channels
High Stability & Reliability
Parallel Interface (TTL)
Modularized Design
Customzied Wavelength available
| Parameter | Unit | OSW-1x48 |
| Wavelength Range | nm | 850±40/1300±40 | 1260~1650 |
| Operating Wavelength | nm | 850/1300 | 1310/1550 |
| Insertion Loss | dB | <1.2 | <1.0 |
| Return Loss | dB | MM≥30 SM≥50 |
| Crosstalk | dB | MM≥35 SM≥55 |
| Polarization Dependent Loss | dB | 0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.25 |
| Repeatability | dB | ≤±0.02 |
| Power Supply | V | 5.0 or 12v |
| Lifetime | times | ≥107 |
| Switch Time | ms | ≤8 |
| Optical Power | mW | ≤500 |
| Operating Temperature | ℃ | -20~+75 (-40~+85 available) |
| Storage Temperature | ℃ | -40~+85 |
| Dimension | mm | 135×64×32 |
| | High Temp. Ageing & High-Low Temperature cycling | | 100% Testing Before Shipment |
Q1:Can I have a sample order? What is your MOQ? A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
