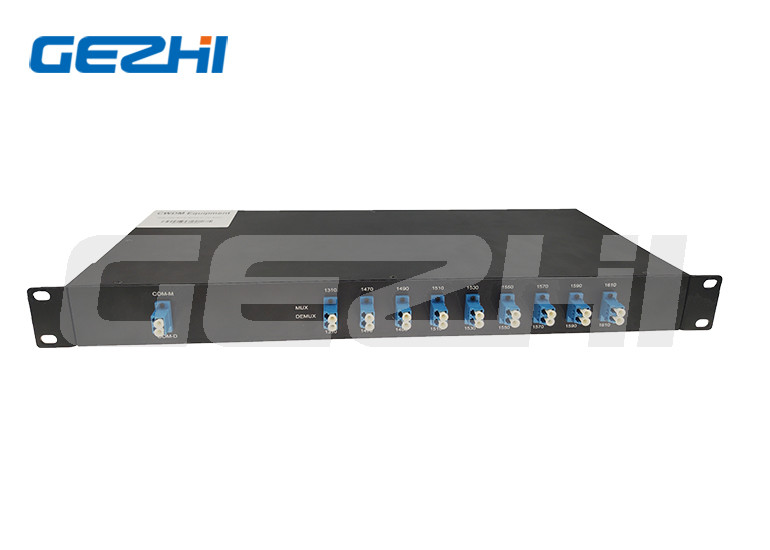

    High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network

    Ask Lasest Price
    Brand Name : GEZHI or OEM
    Model Number : 8 CH CWDM
    Certification : CE RoHS,ISO9001
    Price : USD >= 1 pieces $96
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Day
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network

    Product description

    High Quality 8 Channel cwdm Mux Demux Optic Cwdm Odam For Access Network

    CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.


    High Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access NetworkHigh Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access NetworkHigh Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access NetworkHigh Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access NetworkHigh Quality 8 Channel Cwdm Mux Demux Optic Cwdm Odam For Access Network

    Feature
    Low Insertion Loss
    High Isolation
    Low PDL
    Compact Design
    Good Channel-to-channel UniformityWide Operating Wavelength:1260nm~1620nm or 1460nm~1620nm
    Wide Operating Temperature:-5℃~75℃
    High Reliability and Stability
    PRODUCT SPECIFICATIONS
    Parameter
    Unit
    CWDM Mux Demux
    Channel Spacing
    nm
    20nm
    Center Wavelength
    nm
    1270~1610 or 1271~1611
    Channel Passband
    nm
    ±6.5
    Channel Number
    /
    4CH
    8CH
    16CH
    Insertion Loss
    dB
    <1.5
    <2.5
    <5.5 or <3.5(with skip)
    Isolation @Adjacent Channel
    dB
    >30
    Isolation @Non-adjacent Channel
    dB
    >40
    Isolation @Express Port
    dB
    >15
    Polarization Dependent Loss
    dB
    <0.2
    Polarization Mode Dispersion
    dB
    <0.1
    Directivity
    dB
    >50
    Return Loss
    dB
    UPC >45 APC>50
    Power Handling
    mW
    <500 (High Power type available)
    Fiber Type
    /
    SMF-28e (Polarization Maintaining Type available)
    Operating Temperature
    -20~+75 (-40~+85 available)
    Storage Temperature
    -40~+85
    Package Type
    mm
    ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

    Test Enviroment
    NO-dust workshop
    High Temp. Ageing & High-Low Temperature cycling
    100% Testing Before Shipment
    Optical Spectrum Analysis

    FAQ
    Q1:Can I have a sample order? What is your MOQ?
    A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
    Q2: What's the Lead time?
    A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
    Q3: What are the payment terms?
    A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
    Q4: What is your warranty time
    A4: 3 years' warranty.
    Q5: Could I use our own logo, label and package?
    A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
