Product Description

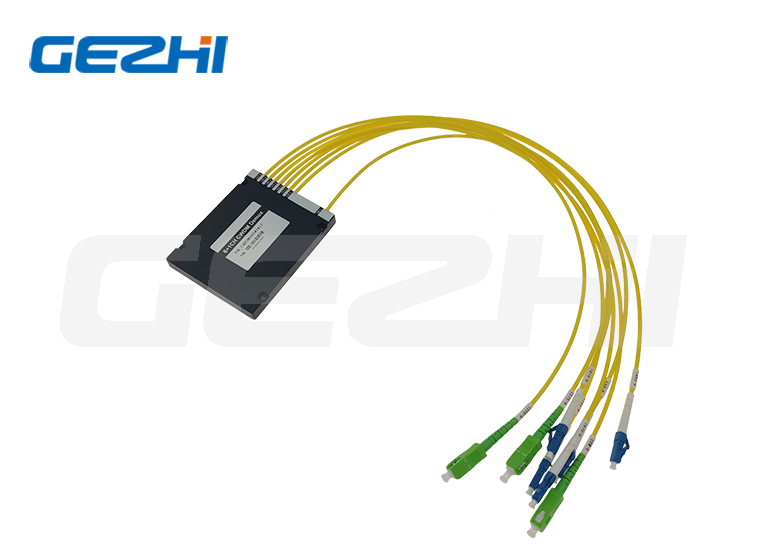

CWDM Wdm Module 6+1CH CWDM MUX FTTX ABS Single Fiber SC/APC LC/APC
connector
Applications
CWDM System
PON Networks
FTTX
Metro ethernet
CATV Links
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Access Network
1×N CWDM Mux/Demux Module
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 |
| Center Wavelength (nm) | ITU, ITU+1 |
| Passband (nm) | ITU±6.5 |
| Operating Wavelength (nm) | 1460~1620 or 1260~1620 |
| Channel Space (nm) | 20 |
| Fiber Type | SMF-28e or customer specified |
| IL (dB) (P/A Grade) | 0.7/1.0 | 1.4/1.7 | 2.0/2.5 | 2.5/3.0 |
| Isolation (dB) | Adjacent Channel | 30 |
| Non-Adjacent Channel | 50 |
| Ripple (dB) | 0.3 | 0.4 | 0.5 | 0.5 |
| PDL (dB) | 0.2 |
| PMD (ps) | 0.1 |
| RL (dB) | 45 |
| Directivity (dB) | 50 |
| Maximum Optical Power (mw) | 500 |
| Operating Temperature (°C) | -40~85 |
| Storage Temperature (°C) | -40~85 |
| BOX Package (mm) | 100*80*10 | 140*115*18 |
| LGX Package | 1U, 2U |
| 19’’ Rack mount Package | 1U |
Compliance
Telcordia GR-1209-CORE-2001
RoHS
Telcordia GR-1221-CORE-1999
Picture Show
FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
