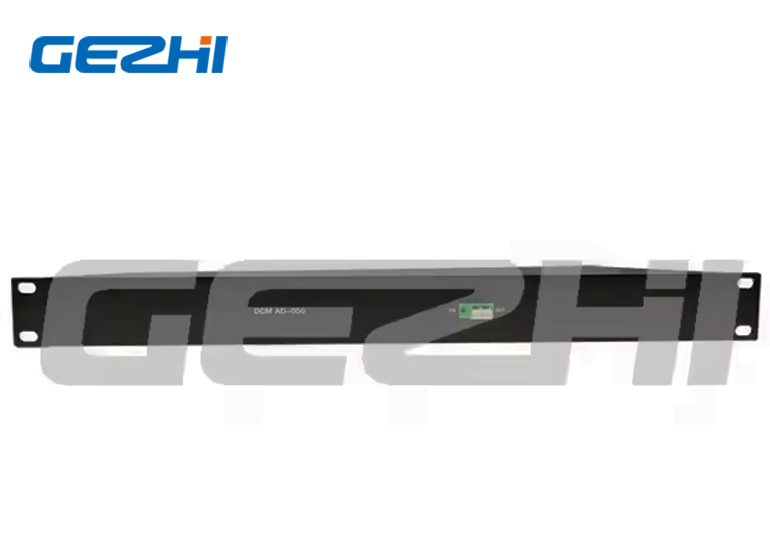

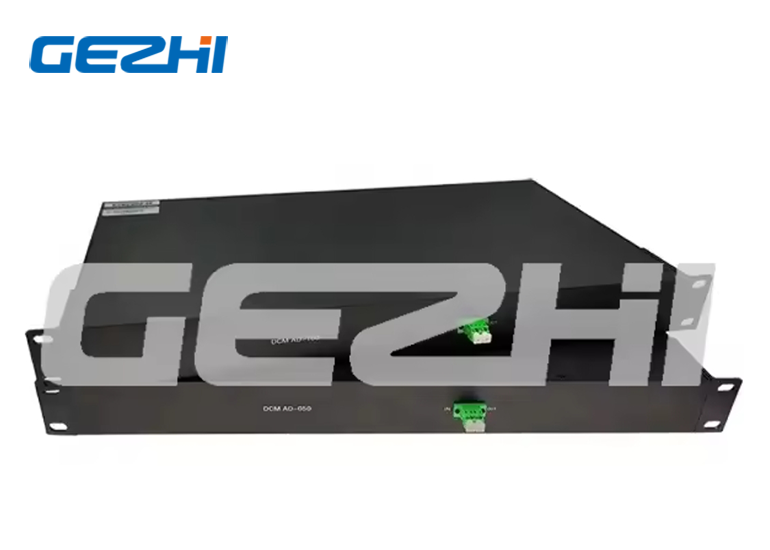

Fiber Repeater DCM OADM chassis Passive dispersion compensation module Fiber Optic DCM in 19" 1U Rackmount
Dispersion Compensation Module (DCM) is designed to fix the form of optical signals that are deformed by chromatic dispersion. The main constituent of DCM is DCF (Dispersion Compensation Fiber) with a negative chromatic dispersion value at C-band wavelength. The module offers a high level of compensation while maintaining a low flat insertion loss as
well as a low latency. When combined with EDFA and OEO, DCM provides a simple, reliable, and cost-effective long-haul transport solution, making signals go further without regeneration.
Feature
Optimized residual dispersion
Low insertion loss Low
Polarization Mode Dispersion
100% Slop Compensation of G.652 fiber in C-band (typical) Broadband dispertion compensation in DWDM System Meet or Exceed Telcordia GR-2854-CORE & GR-21221-CORE Different package styles, connector types, and pigtail lengths are available
Specification
| Parameters | AD-020 | AD-040 | AD-060 | AD-080 | AD-100 | AD-120 |
| Dispersion@1545nm (ps/nm) | -340±10 | -670±20 | -1000±30 | -1340±40 | -1680±50 | -2010±60 |
| Relative Dispersion Slope 1545nm (nm-1) | |
| Inerstion Loss (dB) | ≤4.5 | ≤6.3 | ≤8.3 | ≤10.4 | ≤12.0 | ≤12.0 |
| Polarization Mode Dispersion(ps) | ≤0.6 | ≤0.7 | ≤0.8 | ≤0.9 | ≤1.0 | ≤1.1 |
| Polarization Dependent Loss (dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Parameters | AD-010 | AD-030 | AD-050 | AD-070 | AD-090 | AD-110 |
| Dispersion@1545nm (ps/nm) | -170±5 | -500±15 | -835±25 | -1170±35 | -1500±45 | -1840±55 |
| Relative Dispersion Slope 1545nm (nm-1) | 0.0036 +/- 20% |
| Inerstion Loss (dB) | ≤3.5 | ≤5.4 | ≤7.3 | ≤9.2 | ≤11.1 | ≤12.0 |
| Polarization Mode Dispersion(ps) | ≤0.6 | ≤0.7 | ≤0.8 | ≤0.9 | ≤1.0 | ≤1.1 |
| Polarization Dependent Loss (dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Parameters | | |
| SBS Threshold(dBm) | | |
| Nonlinear Coeff.(n2/Aeff) (W-1) | | |
| Effective Area(Aeff) (um2) | | |
| Environmental Characteristics | |
| Parameters | | |
| Operating Temperature Range | | |
| Storage Temperature Range | | |
| Environmental/ Reliability | Meet Telcordia GR-2854 and GR-1221 | |
| Package |
| Package Style | 19" 1U Rackmount | Connector | LC/UPC |
| Others | Neutral Packaging or Customized |
Ordering Information
AD-SM-C-050-LC/UPC-1RU
AD : DCM Module；
SM :Singlemode fiber pigtailed；
C : C Band；
050 :Dispersion kilometers；
LC/UPC :Connector type；
1RU:19" 1U Rackmount；
Product Model:
AD-SM-C-010-LC/UPC-1RU
AD-SM-C-020-LC/UPC-1RU
AD-SM-C-030-LC/UPC-1RU
AD-SM-C-040-LC/UPC-1RU
AD-SM-C-050-LC/UPC-1RU
AD-SM-C-060-LC/UPC-1RU
AD-SM-C-070-LC/UPC-1RU
AD-SM-C-080-LC/UPC-1RU
AD-SM-C-090-LC/UPC-1RU
AD-SM-C-100-LC/UPC-1RU
AD-SM-C-110-LC/UPC-1RU
AD-SM-C-120-LC/UPC-1RU
