TTL Interface 1x32 SM 500mW 1650nm Fiber Optical Switches

SM Fiber Optic 1x32 Switch

The SM fiber Optic 1x32 Switch from GEZHI Photonics Co.,Ltd provides channel selection between a single input and N output fibers.

The output channel number is customer specified and it can be 1x8, 1x16, 1x32 or others. It comes with the paralled interface (TTL) and drive circuit breakdown self-checking function. This 1x32 optical switch can be OEM. Its is based on our advanced fiber optics technology which has good repeatability, low insertion loss, low cost and high performance. The operation wavelength can be from single mode 1260 to 1650nm, multimode 850±40 / 1300±40nm or customized wavelength.

Features

Low Loss

High Reliability

Modularized Design

Applications

Ring Network

Multi Light Source

Testing of Fiber, Optical Component
Remote Monitoring in Optical Network

GEZHI's 1x32 stepper motor optical switches are a direct fiber to fiber switch technology, that operates by physically pointing one fiber to the other. This is accomplished by utilizing a high resolution stepper motor to precisely rotate and point the common fiber(s) to the selected output fiber(s).

SM Fiber Optic 1x32 Switch Specification

Parameter	Parameter Values
Model	GZ-FSW-1X32
Insertion Loss	≤0.8 dB
Wavelength Range	1260~1650 nm
Test Wavelength	1310/1550 nm
Fiber Type	SM, 9/125um(SMF-28)
Return Loss	≥50 dB
Crosstalk	≥ 70 dB
PDL	≤0.05 dB
WDL	≤0.25 dB
TDL	≤0.25 dB
Repeatability	≤0.02 dB
Lifetime	> 10⁷
Switching Time	≤8 ms (Adjacent channel)
Optic Power	≤500 mW
Connector	FC/PC
Control Mode	TTL
Working Power Supply	5V/500 mA
Product Sze	135 x 64 x 46
Operating Temperature	-20 ℃ to +70 ℃
Operating Temperature	-40 ℃ to +85 ℃

Note: 1. Customization is available.

Both multimode and single mode versions of this switch are available. They feature high level of
performance required for multi-unit testing in R&D and in manufacturing environments. They are also
highly suitable for applications in telecommunications, manufacturing, and test environments, because of
their low IL and excellent repeatability. In addition to the many standard options available, we also
customize switches to meet the customer’s specific needs

SM Fiber Optic 1x32 Switch Pin Specifications

DB-15 male connector
Pin No.	I / O	Signal	Description
2	Input	D0	D0~ D5 is channel selection Bit0~Bit5,D0 is low, D5 is high
3	Input	D1
4	Input	D2
5	Input	D3
6	Input	D4
11	Input	RESET	TTL, Low level reset to channel 0. High level means channel selection bits are effective.
7	Out	READY	TTL, Ready (High=Not ready, Low=Ready)
8	Out	ERROR	TTL, Error OR Failure , (High=Error, Low=No error)
1,9	Power	GND	Ground
12	Power	VCC1	5.0±5% VDC Motor Power Supply (max 500mA)
15	Power	VCC2	5.0±5% VDC Circuit Power Supply (max 50mA)
4,6,7,8,10,13,14	NC	NC	vacancy

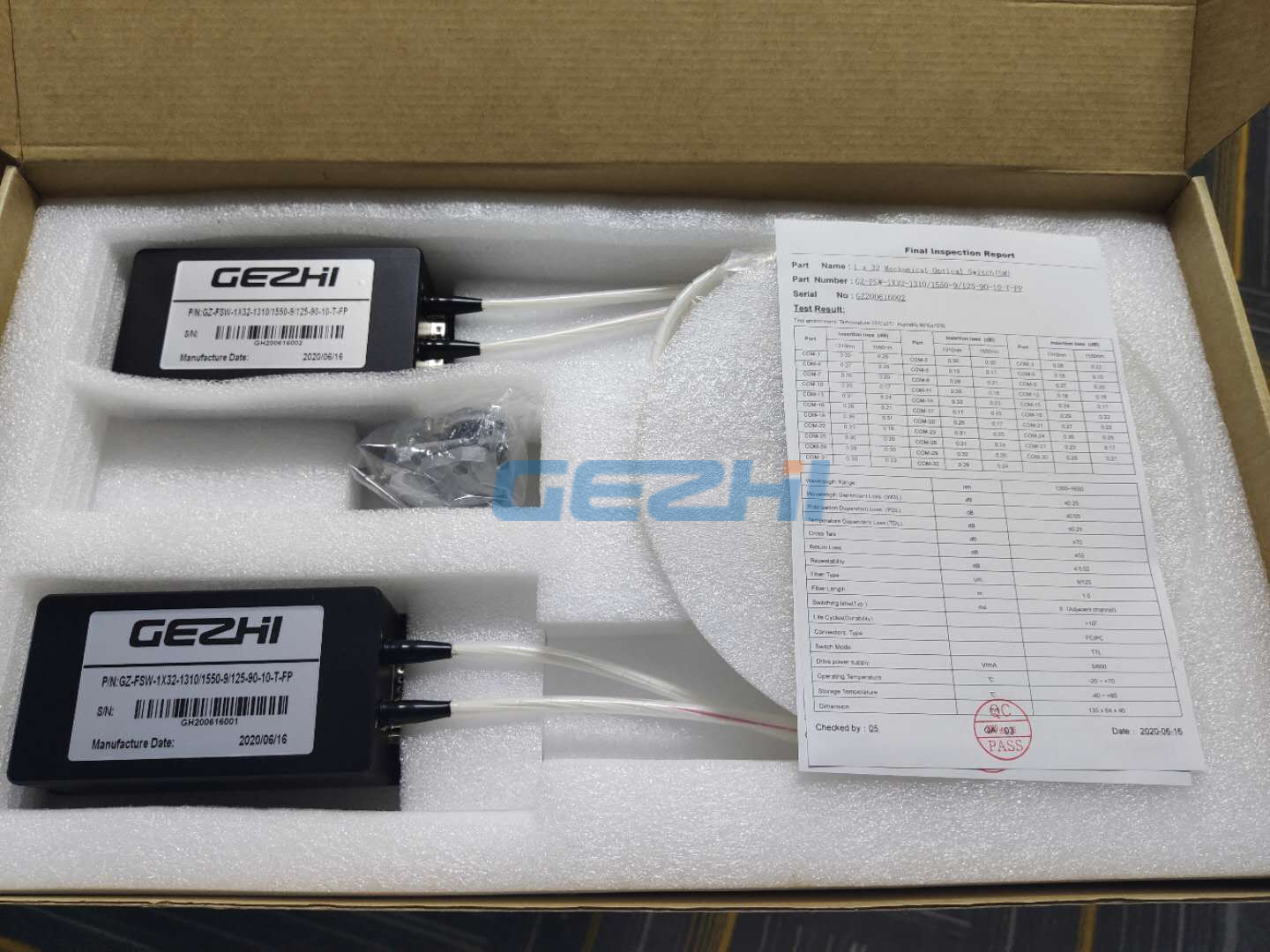

SM Fiber Optic 1x32 Switch picture
