    FC APC 1x3T 1620nm Latching Optical Switch Device

    Fiberoptic Switches 1x3 / 3x1 Latching Optical Switch device


    GEZHI’s Fiberoptic Switches 1x3 / 3x1 Latching Optical Switch device support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.


    Features

    Applications

    • Miniature size
    • Low Insertion Loss
    • Bi-directional Low optical distortions
    • Short switching time
    • Low cross talk
    • System monitoring
    • Metropolitan Area Network
    • R&D in Laboratory
    • Optical Netrwork Protection / Restoration
    • Optical Signal Routing
    • Configurable Optical Add / Drop
    • Transmitter and Receiver Protection

    Specification

    1×3 T Type SwitchUnitTypical
    Operation Wavelengthnm850nm or 1310/1490/1550nm
    Insertion LossdB<0.8
    Wavelength Dependent LossdB<0.2
    Polarization Dependent LossdB<0.2
    Return LossdBSM: >55 MM:>40
    Cross TalkdBSM: >55 MM:>40
    Switching TimemsTypical: 4 Max:10
    RepeatabilitydB<±0.02
    DurabilityCycles>10 Million
    Switching TypeLatching / Non-Latching
    Optical Power HandlingmW<500mW
    Operating VoltageVDC3V or 5V
    Operating Temperature-5~+70
    Storage Temperature-40~+85
    Fiber Type/SM/MM Fiber
    Package Dimensionmm27L x 23W x 8.2

    Note: 1. Customization is available.

    2. Specified without connector, and add an additional 0.2dB loss per connector.

    Electrical Driving
    1X3 index.jpg

    Ordering Information

    GZ-FSW-1x3T-x-xx-x-x-xx-xx-x

    XXXXXXXXXX
    ModeWavelengthVoltage TypeControl ModelFiber DiameterFiber LengthConnector

    S=SM 9/125

    M5=MM 50/125

    M6=MM 62.5/125

    85=850nm

    13=1310nm

    15=1550nm

    13/15=1310/1550nm

    760=760nm

    1742=1742nm

    X=Others

    3=3V

    5=5V

    L=Latching

    N=Non- Latching

    25=250um

    90=900um

    05=0.5m

    10=1.0m

    X=Others

    0=None

    1=FC/PC

    2=FC/APC

    3=SC/PC

    4=SC/APC

    5=ST/PC

    6=ST/APC

    7=LC/PC

    8=LC/APC

    X=Others

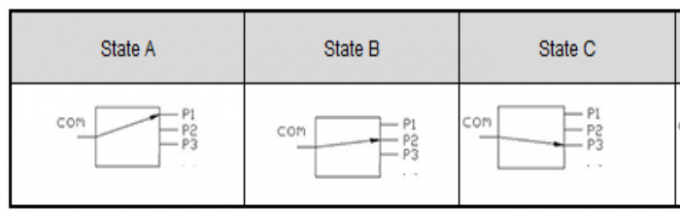

    Optical Route



    Dimension

    MINI 1X8 T SIZE.jpg
