100Ghz One Fiber 1x16 Optical Passive DWDM Equipment

Ask Lasest Price
Brand Name :	GEZHI or OEM
Model Number :	16CH-DWDM-M-1U
Certification :	CE RoHS ,ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100000Channel per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

100Ghz One Fiber 1x16 Optical Passive DWDM Equipment

Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber

GEZHI’ Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber is a low insertion loss, high density passive optical module which based on the thin film coating technology with C21 to C36 wavelength and a express port for future devolopment and fiber extend. The Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber offers an high channel isolation WDM solution for data centers and Metro access applications. Its consist by one Standlone DWDM Muxltiplexer and a Standlone DWDM demultiplexer. The Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber is ideal for long-haul transport of fiber optic singals all over a single fiber.

Features	Applications
16 channels per fiber Single Fiber Bi-directional standalone in 19" 1U Rack Mount High stability and reliability	Access / Enterprise Networks CATV Fiber Optic Links Dense WDM Systems Metro Networks Long Haul Networks

Specification

Parameter	Unit	1x16CH Passive Dense WDM
Channel Number	--	16 Channel
Operation Wavelength	nm	C21~C36
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	<5.0 or add Skip <3.2dB
Insertion Loss @PB	dB	<2.5
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss:>45
Power Handling	mW	<500
Connector	--	LC/UPC
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package Dimension	mm	19" 1U Rack Mount

1x16 Optical Passive DWDM Equipment Filter Cascading

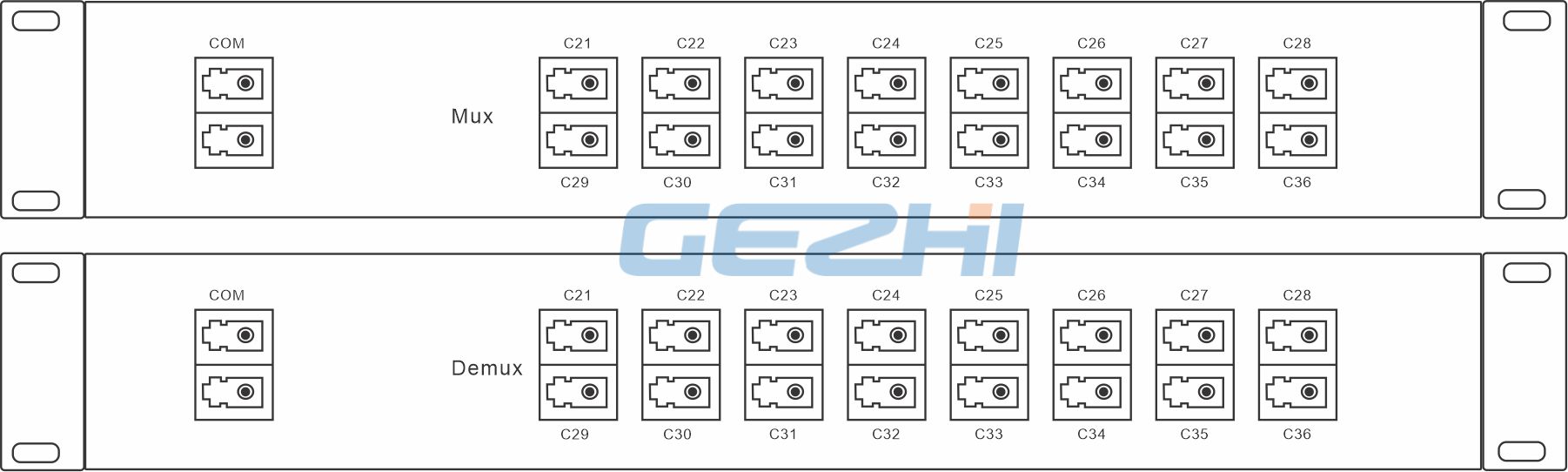

Rack Mount type 1x18 CH DWDM Mux equipment

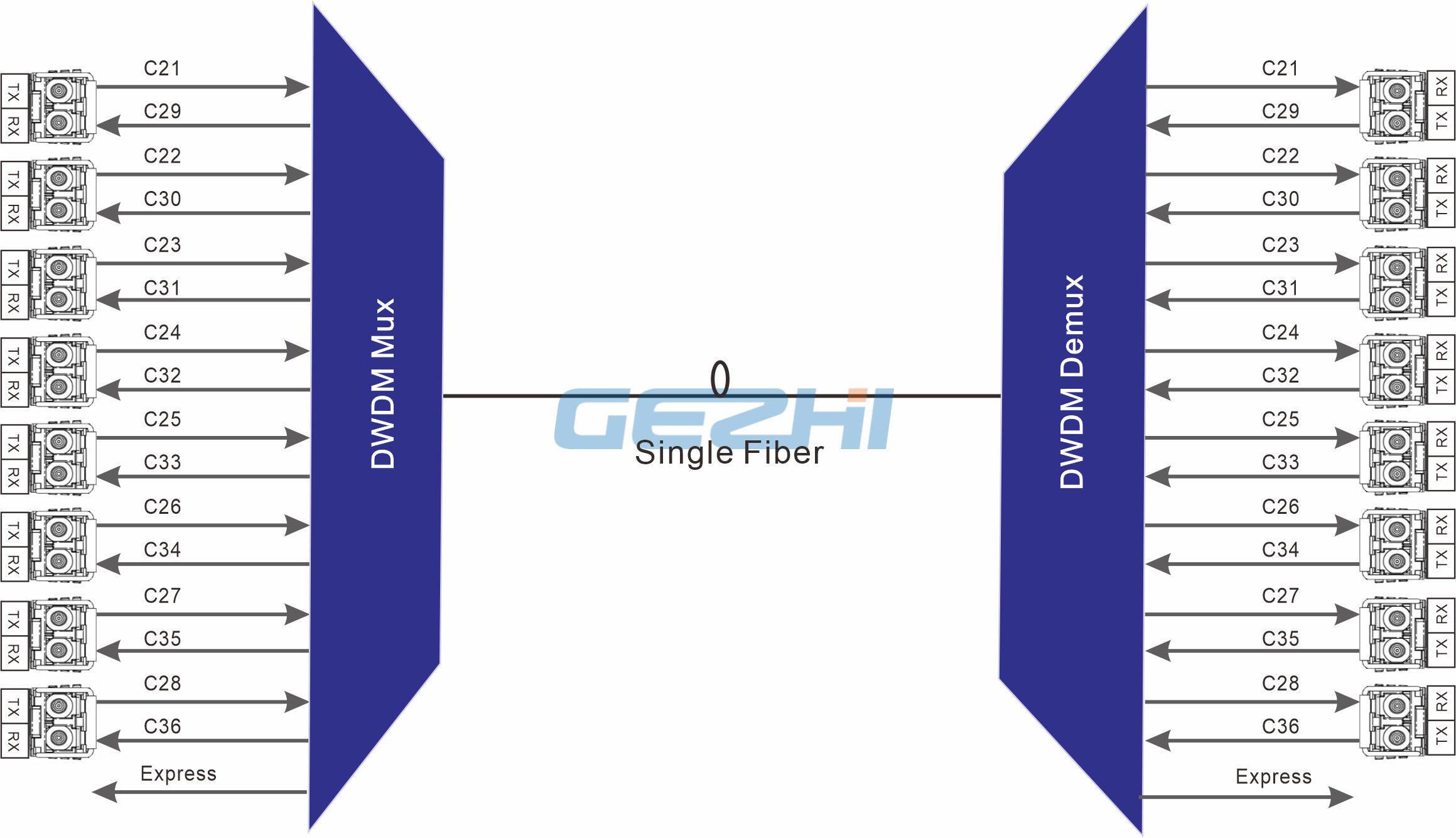

Standlone 1x16 DWDM Mux Demux splitter equipment transmission over Single Fiber
