Dual Fiber 40CH AAWG Athermal Arrayed Waveguide Grating

Ask Lasest Price
Brand Name :	GEZHI or OEM
Model Number :	40CH-AAWG-D
Certification :	CE RoHS ,ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100000Channel per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

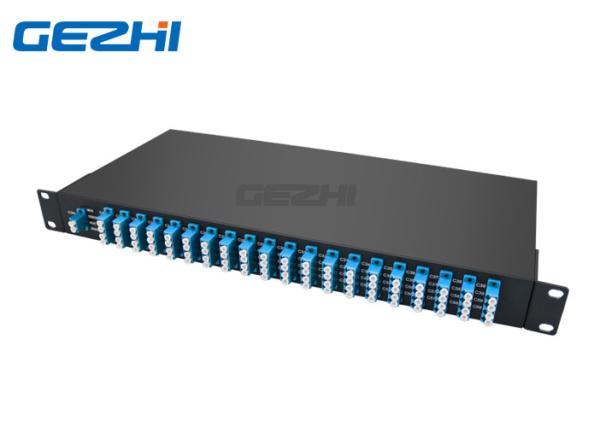

Dual Fiber 40CH AAWG Athermal Arrayed Waveguide Grating

40CH Athermal Arrayed Waveguide Grating Dual Fiber Multiplexer and Demultiplexer

Gezhi’s 40ch Mux Demux AAWG is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG technology with Gaussian Monolithic Technology. The 40-channel AAWG module offers an ultra low-loss (below 4.5dB) and high channel isolation WDM solution for data centers and metro access applications. this 40CH Athermal Arrayed Waveguide Grating provide ease of fiber handling, excellent channel isolation, and long-term reliability in a 19" 1U Frame Rack, which is the ideal device for systems requiring superior performance, high channel counts and low cost. In conjunction with the amplifiers and transponders, the 40ch Athermal Arrayed Waveguide Grating supports a wide range of architectures from simple point-to-point to amplified ring configurations.

Features

Completely passive, no power& no cooling required

High Channel Isolation for increased reliability

Built-in Mux and Demux in one unit, working on two network fibers

Ultra Low insertion loss for enhanced distance and performance

Applications

WDM based ADM

Optical signal processing

WDM transmission

Wavelength selective routing

Metro and long haul Networks

Specification

Parameters	Conditions	Specifications			Units
Parameters	Conditions	Min.	Max.
Operating Temperature	Operating	-5	65		oC
Operating Humidity	Operating	5	95		%RH
Storage Temperature	Non_Operating	-40	+85		oC
Storage Humidity	Non_Operating	5	95		%RH
*OPTICAL SPECIFICATION*	*AWG GAUSSIAN AAWG*
Parameters	Condition	Specs			Units
Parameters	Condition	Min	Type	Max
Number of Channels			2-1×40
Number Channel Spacing	100GHz		100		GHz
Cha. Center Wavelength	ITU frequency.		C –band		nm
Clear Channel Passband			±0.1		nm

*OPTICAL SPECIFICATIONS*
Parameters	Condition	Specs			Units
Parameters	Condition	Min	Type	Max
Wavelength Stability	Maximum range of the wavelength error of all channels and temperatures in average polarization.		±0.05		nm
-1 dB -1 dB Channel Bandwidth	Clear channel bandwidth defined by passband shape. For each channel	0.24			nm
-3 dB -3 dB Channel Bandwidth	Clear channel bandwidth defined by passband shape. For each channel	0.43			nm
Optical Insertion Loss at ITU grid	Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations.		3.5	4.5	dB
Adjacent Channel Isolation	Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the adjacent channels.	30			dB
Non-Adjacent, Channel Isolation	Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the nonadjacent channels.	40			dB
Total Channel Isolation	Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of all other channels, including adjacent channels.	33			dB
Insertion Loss Uniformity	Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures.		0.8	1.0	dB
Insertion Loss Ripple	Any maxima and any minima of optical loss across ITU band, excluding boundary points, for each channel at each port		0.4	0.5	dB
Directivity	Ratio of reflected power out of any channel (other than channel n)to power in from the input channel n	50			dB
Optical Return loss	Input & output ports	40			dB
PDLPolarization Dependent Loss in Clear Channel Band	Worst-case value measured in ITU band		0.3	0.5	dB
Polarization Mode Dispersion				0.5	ps
Maximum Optical Power				23	dBm
MUXDEMUX input output Monitoring range		-35		+23	dBm

Ordering Information

AWG

Channel Spacing

Number of Channels

Configuration

1st Channel

Package Type

In/Out Connector

1=100GHz

32=32Channel

40=40 Channel

44=44 Channel

48=48 Channel

S=Single Fiber

D=Dual Fiber

21=Ch21

……

34=Ch34

……

50=Ch50

……

RU=19” 1U Rackmount

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

S=Specify

40CH Athermal Arrayed Waveguide Grating Dual Fiber
