C50 Gaussian Dual Fiber 32 Channel 100G AAWG DWDM

100G AAWG DWDM Equipment Gaussian Type Dual Fiber

Gezhi’s 100G AAWG DWDM Equipment Gaussian Type Dual Fiber is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG with Gaussian Monolithic Technology. The 100G AAWG DWDM Equipment Gaussian Type Dual Fiber offers an ultra low-loss (Max: 3.5dB) and high channel isolation WDM solution for metro access and data centers applications. this 100G AAWG DWDM Equipment Gaussian Type Dual Fiber ease of fiber handling, long-term reliability and excellent channel isolation in a 1U 19" Rackmount, which is the ideal device for systems requiring superior performance, low cost and high channel counts. The 100G AAWG DWDM Equipment Gaussian Type Dual Fiber built-in Mux + Demux in one unit, working on two network fibers.

Features	Applications
High Channel Isolation Standalong 19" 1U Rackmount Completely passive Low Insertion Loss	Metro and long haul Networks Optical signal processing Wavelength selective routing WDM based ADM WDM transmission

32CH AAWG DWDM Mux+Demux Equipment

Ordering Information

AWG

Channel Spacing

Number of Channels

Configuration

1st Channel

Package Type

In/Out Connector

1=100GHz

32=32Channel

40=40 Channel

44=44 Channel

48=48 Channel

S=Single Fiber

D=Dual Fiber

21=Ch21

……

34=Ch34

……

50=Ch50

……

RU=19” 1U Rackmount

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

S=Specify

The DWDM AAWG (Athermal Arrayed Waveguide Grating) module is a kind of passive module based on PLC (Planar Waveguide) technology, which does not need additional power supply or temperature control; Compared with traditional TFF (thin film filter) products, AAWG has the advantages of high integration, good uniformity, low PMD and low insertion loss. AAWG can provide a variety of channels, packaging methods and extended ports for customers to choose; At present, due to the multi-channel characteristics of AAWG, it is widely used in long-distance signal transmission such as MAN, backbone network and data center.

Specification

Parameters	Conditions	Specifications			Units
Parameters	Conditions	Min.	Max.
Operating Temperature	Operating	-5	65		oC
Operating Humidity	Operating	5	95		%RH
Storage Temperature	Non_Operating	-40	+85		oC
Storage Humidity	Non_Operating	5	95		%RH
*OPTICAL SPECIFICATION*	*AWG GAUSSIAN AAWG*
Parameters	Condition	Specs			Units
Parameters	Condition	Min	Type	Max
Number of Channels			2-1×32
Number Channel Spacing	100GHz		100		GHz
Cha. Center Wavelength	ITU frequency.		C –band		nm
Clear Channel Passband			±0.1		nm

Wavelength Stability	Maximum range of the wavelength error of all channels and temperatures in average polarization.		±0.05		nm
-1 dB -1 dB Channel Bandwidth	Clear channel bandwidth defined by passband shape. For each channel	0.24			nm
-3 dB -3 dB Channel Bandwidth	Clear channel bandwidth defined by passband shape. For each channel	0.43			nm
Optical Insertion Loss at ITU grid	Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations.		3.2	3.5	dB
Adjacent Channel Isolation	Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the adjacent channels.	30			dB
Non-Adjacent, Channel Isolation	Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the nonadjacent channels.	40			dB
Total Channel Isolation	Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of all other channels, including adjacent channels.	33			dB
Insertion Loss Uniformity	Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures.		0.8	1.0	dB
Insertion Loss Ripple	Any maxima and any minima of optical loss across ITU band, excluding boundary points, for each channel at each port		0.4	0.5	dB
Directivity	Ratio of reflected power out of any channel (other than channel n)to power in from the input channel n	50			dB
Optical Return loss	Input & output ports	40			dB
PDLPolarization Dependent Loss in Clear Channel Band	Worst-case value measured in ITU band		0.3	0.5	dB
Polarization Mode Dispersion				0.5	ps
Maximum Optical Power				23	dBm
MUXDEMUX input output Monitoring range		-35		+23	dBm

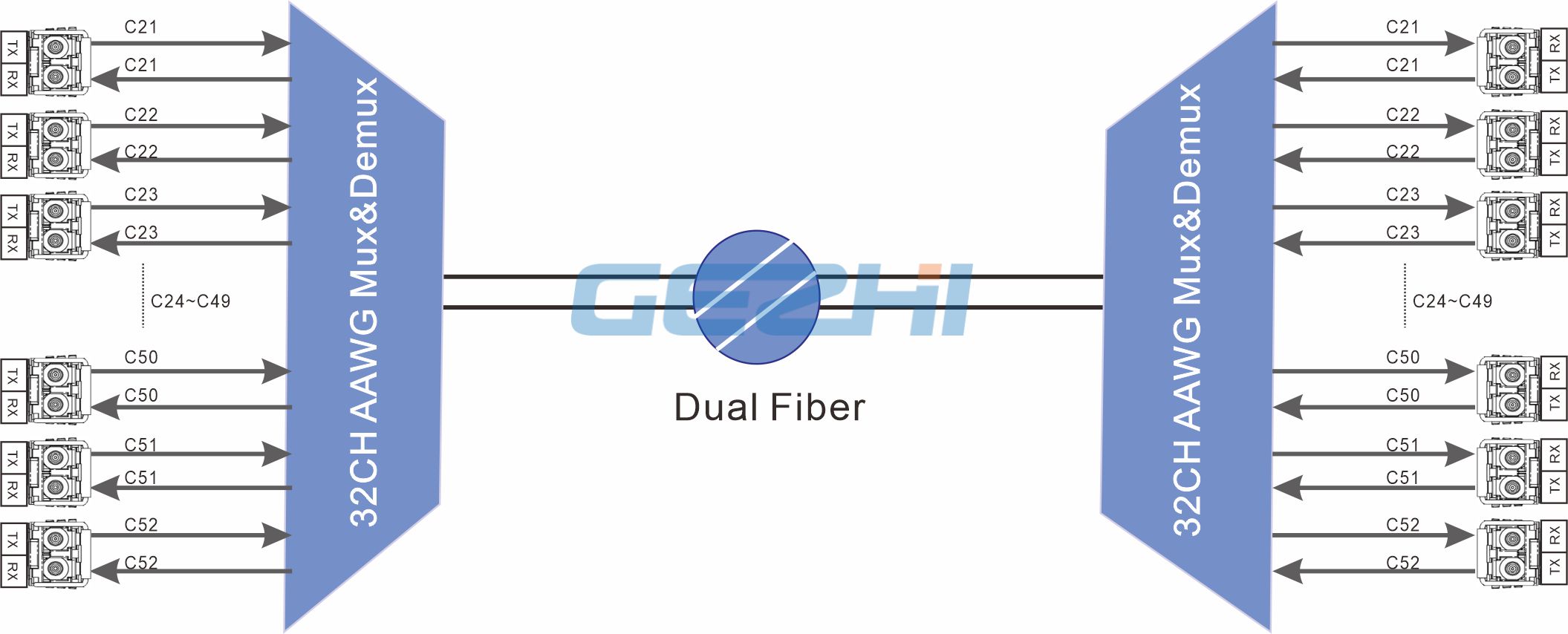

32 Channels 100Ghz Gaussian Athermal AWG DWDM Dual Fiber Rack Mountable

100G AAWG DWDM Equipment Gaussian Type transmission over Dual Fiber
