One Fiber 1x32 Channels AAWG DWDM Rackmount Modules

1x32 Channels AAWG DWDM Rackmount Modules

Gezhi’s 1x32 Channels AAWG DWDM Rackmount Modules is a low loss, high density and standalone passive optical module. It is based on Athermal Arrayed Waveguide Grating with Gaussian Monolithic Technology. The 1x32 Channels AAWG DWDM Rackmount Modules offers an ultra low-loss (Max: 3.5dB) and high channel isolation WDM solution for metro access and data centers applications. this 1x32 Channels AAWG DWDM Rackmount Modules ease of fiber handling, long-term reliability and excellent channel isolation in a 1U 19" Rackmount. The 1x32 Channels AAWG DWDM Rackmount Modules built-in Mux in one unit, working on single network fibers.

Features	Applications
High Channel Isolation No power required Ultral Low Insertion Loss Standalong 19" 1U Rackmount	Wavelength selective routing Metro and long haul Networks WDM transmission Optical signal processing

Specification

Parameters	Conditions	Specifications			Units
Parameters	Conditions	Min.	Max.
Operating Temperature	Operating	-5	65		oC
Operating Humidity	Operating	5	95		%RH
Storage Temperature	Non_Operating	-40	+85		oC
Storage Humidity	Non_Operating	5	95		%RH
*OPTICAL SPECIFICATION*	*AWG GAUSSIAN AAWG*
Parameters	Condition	Specs			Units
Parameters	Condition	Min	Type	Max
Number of Channels			1-1×32
Number Channel Spacing	100GHz		100		GHz
Cha. Center Wavelength	ITU frequency.		C –band		nm
Clear Channel Passband			±0.1		nm

*OPTICAL SPECIFICATIONS*
Parameters	Condition	Specs			Units
Parameters	Condition	Min	Type	Max
Wavelength Stability	Maximum range of the wavelength error of all channels and temperatures in average polarization.		±0.05		nm
-1 dB -1 dB Channel Bandwidth	Clear channel bandwidth defined by passband shape. For each channel	0.24			nm
-3 dB -3 dB Channel Bandwidth	Clear channel bandwidth defined by passband shape. For each channel	0.43			nm
Optical Insertion Loss at ITU grid	Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations.		3.2	3.5	dB
Adjacent Channel Isolation	Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the adjacent channels.	30			dB
Non-Adjacent, Channel Isolation	Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the nonadjacent channels.	40			dB
Total Channel Isolation	Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of all other channels, including adjacent channels.	33			dB
Insertion Loss Uniformity	Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures.		0.8	1.0	dB
Insertion Loss Ripple	Any maxima and any minima of optical loss across ITU band, excluding boundary points, for each channel at each port		0.4	0.5	dB
Directivity	Ratio of reflected power out of any channel (other than channel n)to power in from the input channel n	50			dB
Optical Return loss	Input & output ports	40			dB
PDLPolarization Dependent Loss in Clear Channel Band	Worst-case value measured in ITU band		0.3	0.5	dB
Polarization Mode Dispersion				0.5	ps
Maximum Optical Power				23	dBm
MUXDEMUX input output Monitoring range		-35		+23	dBm

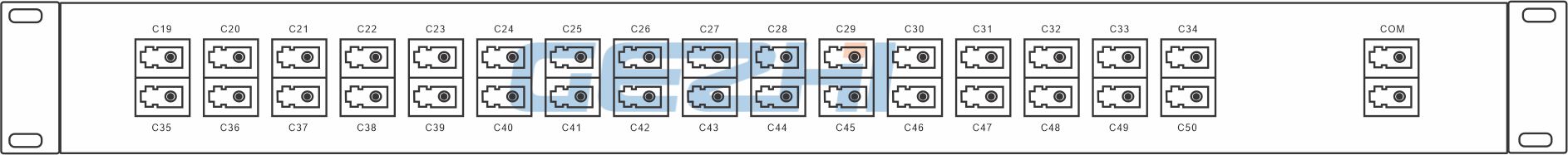

1x32 Channels AAWG DWDM Rackmount Modules

Ordering Information

AWG

Channel Spacing

Number of Channels

Configuration

1st Channel

Package Type

In/Out Connector

1=100GHz

32=32Channel

40=40 Channel

44=44 Channel

48=48 Channel

S=Single Fiber

D=Dual Fiber

21=Ch21

……

34=Ch34

……

50=Ch50

……

RU=19” 1U Rackmount

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

S=Specify

Rack Mount

1x32 Channels AAWG DWDM Rackmount Modules
