Benchtop / Rack Mount Programmable chassis 1x16 Optical Switch Equipment

GEZHI Benchtop / Rack Mount Programmable chassis 1x16 Optical Switch Equipment up to 16port with Fast switching time, high quality and low insertion loss. This Benchtop / Rack Mount Programmable chassis 1x16 Optical Switch Equipment is a functional device which controlling and switching the optical Route. Its can controlled via RS232 port , Ethernet port and auto- scanned on certain frequency or manually selected from front panel. In optic fiber transmission system, it is used for optical route controlling, LAN, light source / detector changing, and protecting the change of Ethernet etc. In optical fiber test system, it is used for optical fiber and optical fiber device testing, network testing, open-air optical cable testing and optical fiber sensing.

Features

LED display panel. Visual display, Convenient operation.
Channel and time interval of automatic scanning can be set up.

RS232 Control and Ethernet Remote Management

Low insertion loss, Fast switching

Applications

System testing

Specification

Panel to Explain:

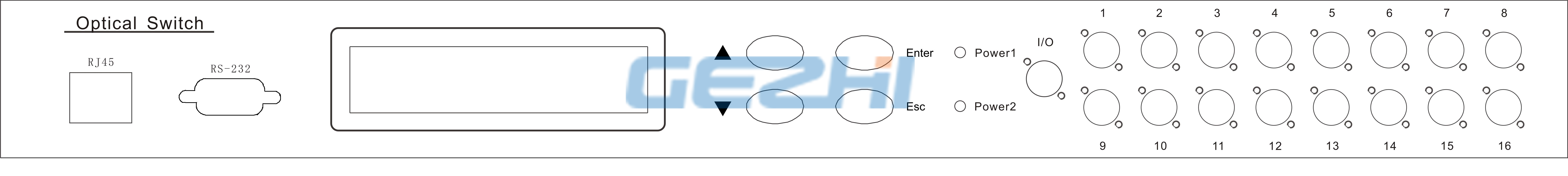

Front Panel

(1),RJ45-Port for Ethernet,RS-232-Serial Port: Port for Monitoring.

(2),Optical Ports: COM input port,1, 2, 3,4 indicate individual part.

(3),LCD-Display Screen: Exhibiting for the address of the equipment, current channel and related information.

(4),▲——Up；▼——Down； Enter——Confirm；Esc——Cancel.

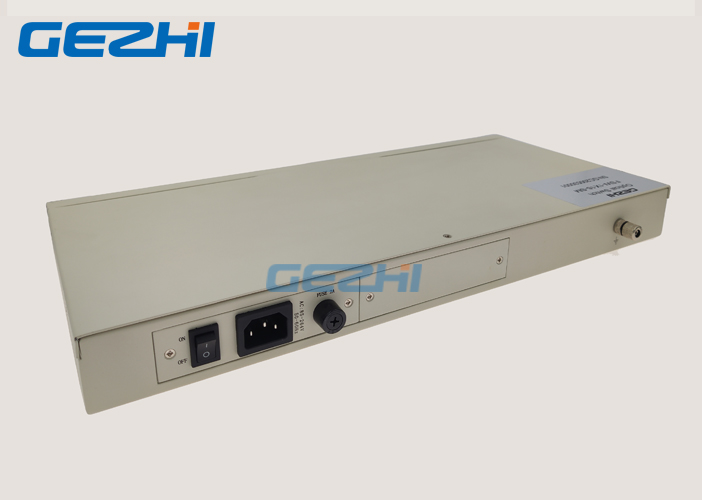

Back Panel

(1),Power:Indication for working power supply. (Single power or Dual power available)

Internal Light Path Diagram

Diagram of Inner Beam Path for 1xN Optical Fiber Switch

Communication Interface

(1),RS-232

When connected to the computer, the DB9 serial port crosswire of both ends should be applied. It means that #2, #3 cable of both ends should be connected crossed, #5 cable should be abutting jointed, and the rest could be left out.

(2),RJ45

When connected to the computer through switch, through lines should be applied. (The accurate order is 1-orange white, 2-orange, 3-green white, 4-blue, 5-blue white, 6-green, 7-brown white, 8-brown.)

When connected to the computer directly, crosswire should be applied. (One end is 1-orange white, 2-orange, 3-green white, 4-blue, 5-blue white, 6-green, 7-brown white, 8-brown. Another end is 1-green white, 2-green, 3-orange white, 4-blue, 5-blue white, 6- orange, 7- brown white, 8-brown.)
