28*Dual 1x2 Optical Switch Equipment 28 pieaces 2x4 Opto-mechanical
Switches
GEZHI's GZ-28-D1X2-U consists of 28 pieaces of Dual 1x2 mechanical optical switches which synchronously switch the optical path. The optical switch is a
light path control device that plays the role of controlling the
optical path and converting the optical path. The control switching of Optical Switches light path can be 48 button on the panel control, also can through the
short-range RS - 232 serial port communication mode or remote RJ45
Ethernet communication by sending a program-controlled command
control switch light path, equipment state of light path by the
green light and red light shows light path.
Features
Low insertion loss, Fast switching
28pcs Independent control button, Easy operation
Two different color of LED display the optical path status
RS232 Control and RJ45 Ethernet Remote Management
Applications
Automatic Measurement
Optical Network Remote Monitoring
FITL
Cable Monitoring and Maintaining system
Specification
| Parameters | Unit | Indicators |
| Unit Type | | GZ-28-D1X2-U |
| Wavelength Range | nm | 850±40 or 1260~1650nm |
| Test Wavelength | nm | 850nm or 1310/1550nm |
| Insertion Loss | dB | Typ. ≤1.0dB, Max.≤1.5 dB |
| Repeatability | dB | ≤ 0.02 |
| Return Loss | dB | MM≥30 SM≥55 |
| Crosstalk | dB | MM≥35 SM≥ 70 |
| WDL | dB | ≤ 0.25 |
| PDL | dB | ≤ 0.05 |
| Optical Power | mW | ≤ 500 |
| Switching Time | ms | ≤10 ms(adjacent channel) |
| Fiber Type | um | 9/125 |
| Connector | | LC/UPC |
| Monitoring Port | | RJ45 & RS-232 |
Working Power Supply
(Plug-type) | V |
AC:100～ 240 (50/60Hz) |
| Power Consumption | W | ＜ 10 |
| Operating Temperature | ℃ | -10 ～ 60 |
| Size | mm | 270x190x135 |
28*Dual 1x2 Optical Switch Equipment 28 pieaces 2x4 Opto-mechanical
Switches

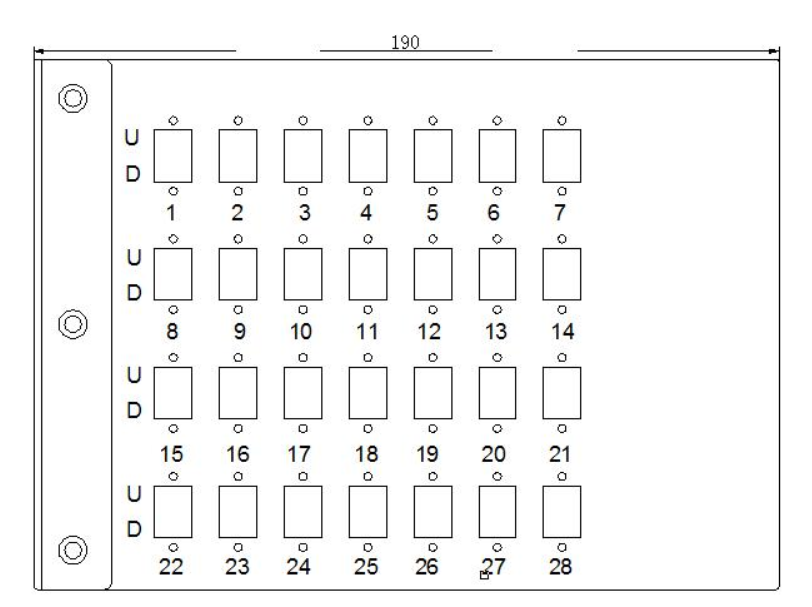

Front Panel
◆ON/OFF: AC-220V Power switch;
◆RJ45:Communications network management interface ;
◆RS-232: Rs- serial interface, RS232 serial communication interface for
device monitoring data information.;
◆1~28 buttons: the button control of 28pieces D1x2 optical switch
◆LED: Two different color of LED display the optical path status
Right Side Panel
Back Panel
◆AC:85~265V: AC-220V Power Interface
◆1~28 is input port,1-1~28-1 and 1-2~28-2 are output:
when the equipment power on initially, the optical path status is
1~28 to 1-2~28-2 of U row, 1~28 to 1-2~28-2 of D row will show Red
color LED,
when pressed button and display Green, the optical path status is
1~28 to 1-1~28-1 of U row, 1~28 to 1-1~28-1 of D row.
