Desktop 1×8 Optical Switch Equipment RS-232 control Easy Operation

GEZHI's Desktop 1×8 Optical Switch Equipment RS-232 is the use of optical switch to realize optical path conversion products. Equipment each light path design a control button, Also can control the light path through the RS - 232 instructions, can be quickly switch button simple optical path and ultimately achieve 1 (input) * N (output) core optical fiber routing strictly non-blocking two-way cross connection, plays an important role in the optical communication applications.

In optical fiber transmission system, The Desktop 1×8 Optical Switch Equipment RS-232 control is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

Features

Low insertion loss, Fast switching
SerialNet, High Reliability, High Stability

Each channel LED lights display status
Each channel button control independently
RS - 232 serial port command control switch

Applications

Cable Monitoring and Maintaining system

Optical Network Remote Monitoring

FITL
Automatic Measurement

Specification

Parameters	Unit	Indicators
Unit Type		FSW-1X8-TR
Wavelength Range	nm	1260~1650
Test Wavelength	nm	1310/1550nm
Insertion Loss	dB	Typ. ≤0.8dB,Max.≤1.5 dB
Repeatability	dB	≤ 0.02
Return Loss	dB	≥ 55
Crosstalk	dB	≥ 70
WDL	dB	≤ 0.25
PDL	dB	≤ 0.05
Optical Power	mW	≤ 500
Switching Time	ms	≤12 ms(adjacent channel)
Fiber Type	um	9/125
Connector		FC/APC
Control Mode		Key or RS-232
Working Power Supply (Plug-type)	V	AC:100～ 240 (50/60Hz)
Power Consumption	W	＜ 10
Operating Temperature	℃	-10 ～ +60
Size	mm	(W)245 mm x (D)230 mm x (H)95 mm

Fast switching Desktop 1×8 Optical Switch Equipment RS-232 control

Panel to Explain:

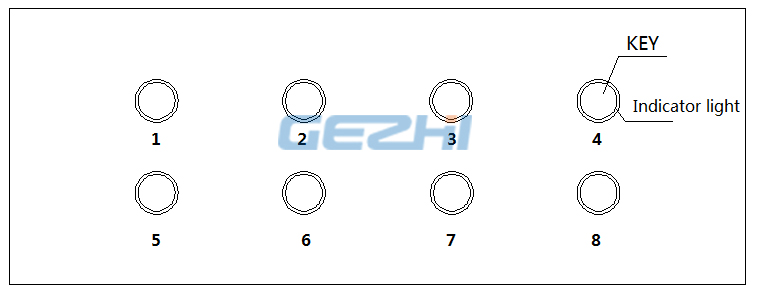

Front Panel

◆ 1~8: Light path switching button and indicator lights.

Back Panel

◆ AC:100~240V: Power supply interface

◆ ON/OFF: Power on and off

◆ COM:Optical fiber interface common terminal

◆ 1~8:Each channel of optical fiber interface

◆ RS-232: A serial port communication interface
