Multi-Channel 1x16 Fiber Optical Switches 1U 19" frame RackMount

GEZHI Fiber Optical Switches offer multi Channel up to 16port with Fast switching time, high quality and low insertion loss. This multi-channel 1x16 Fiber Optical switches Rack Mount type is a functional device which controlling and switching the optical Route. Its can controlled via RS232 port , Ethernet port and auto- scanned on certain frequency or manually selected from front panel. The Multi-Channel 1x16 Fiber Optical Switches 19" 1U Rackmount used in optical fiber test system for optical fiber and its outdoor cable test ,component test, and multi-spot optical sensors monitoring system.

Features

LED display panel. Visual display, Convenient operation.
RS232 Control and Ethernet Remote Management
Channel and time interval of automatic scanning can be set up.

Low insertion loss, Fast switching
SerialNet, High Reliability, High Stability

Transparent transmission signal. High stability and reliability.

Applications

Automatic Measurement
Cable Monitoring and Maintaining system

FITL

Optical Network Remote Monitoring

Specification

Parameters	Unit	Indicators
Channel No.		1xN (N≤16)
Wavelength Range	nm	1260~1650
Test Wavelength	nm	1310/1550
Insertion Loss	dB	Typ: ≤0.8dB, Max:≤1.5 dB
Repeatability	dB	≤ ±0.02
Return Loss	dB	≥ 45
Crosstalk	dB	≥ 70
WDL	dB	≤ 0.25
PDL	dB	≤ 0.1
Optic Power	mW	≤ 500
Switching Time	ms	≤10 ms(Sequence switch time of adjacent channel)
Fiber Type		SM(9/125um)
Connector		FC/PC,FC/APC

Monitoring Port		RJ45,RS-232
Working Power Supply (Plug-type)	V	AC:85～ 265 (50/60Hz)
Power Consumption	W	＜ 10
Operating Temperature	℃	-5 ～ 55
Size	mm	1U:483 x 250 x 45

Panel to Explain:

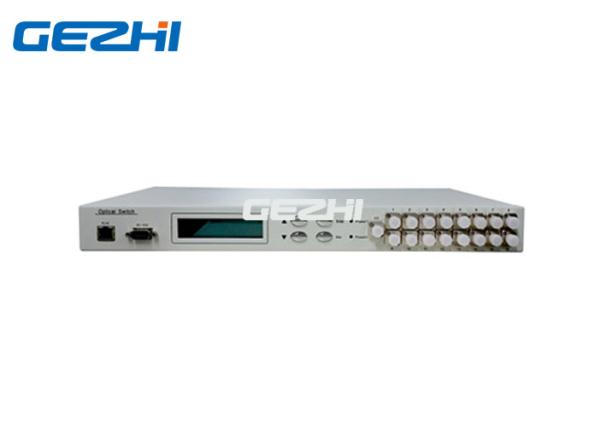

Front Panel

◆ RJ45:Communications network management interface ;

◆ RS-232: Rs- serial interface ; RS232 serial communication interface;

◆ LCD:Devices that display information directly;

◆ ▲: Key to move up; ▼: Key to move down;Enter: Key to determine;

Esc: Key to cancel.

◆ Power: Power light; Error: trouble lamp;

◆ com,1~16:Fiber interface;

Back Panel

◆ AC:85~265V: Power cord interface;

◆ ON/OFF: Master switch of power supply ;
