Single Fiber West East 2CH BIDI Optical Add Drop Multiplexer

Ask Lasest Price
Brand Name :	GEZHI or OEM
Model Number :	2CH-OADM-D-WE-S
Certification :	CE RoHS ,ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100000Channel per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Single Fiber West East 2CH BIDI Optical Add Drop Multiplexer

2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East

GEZHI’ 2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East paked in a ABS box module which is a low insertion loss, high density passive optical module and based on the thin film coating technology with C35, C36 wavelength. Its package one 2CH West and East DWDM OADM module in a ABS Box. This 2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. This GEZHI's 2CH BIDI Optical Add Drop Multiplexer are available in dual-sided (East and West) configurations supporting up to two wavelengths on one fiber.

Features	Applications
Low Insertion Loss 2 channel West & East Single Fiber working No electric power required Flexible OADM networking	Dense WDM Systems CATV Fiber Optic Links Long Haul Networks Channel Add/Drop Metro Networks Wavelength Routing

Specification

Parameter		Unit	2CH BIDI OADM West and East
			Add	Drop
Channel Wavelength		nm	C35, C36
Center wavelength Accuracy		nm	ITU-T Grid @DWDM
Channel Passband		nm	0.8 (100Ghz)
Insertion Loss		dB	<1.1	<1.1
Channel Ripple		dB	0.5
Isolation	Adjacent	dB	>30
	Non-adjacent	dB	>40
Inertion Loss Temperature Sensitivity		dB/℃	<0.005
Wavelength Temperature Shifting		nm/ ℃	<0.002
Polarization Dependent Loss		dB	<0.15
Polarization Mode Dispersion		dB	<0.1
Directivity		dB	>50
Return Loss		dB	>45
Maximum Power Handling		mW	300
Opterating Temperature		℃	-20~+70
Storage Temperature		℃	-40~85
Package dimension		mm	ABS Box 100x80x10

2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East

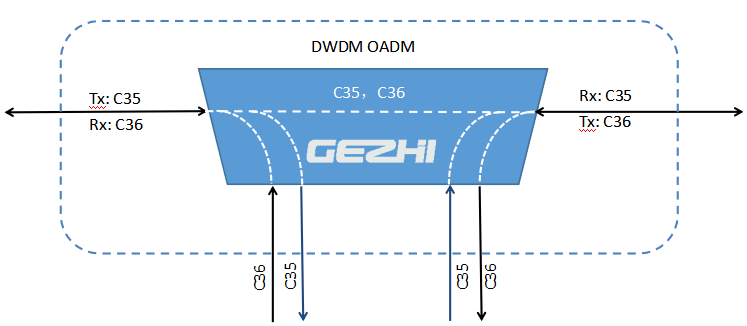

Singe Fiber DWDM OADM Add and Drop Module

Two channel DWDM add & drop multiplexer for EAST&WEST for data transmission over single fibers.

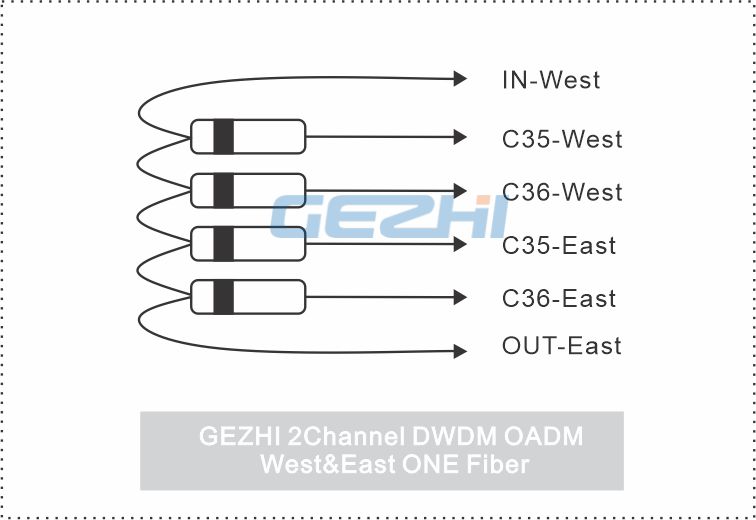

2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East filter cascading

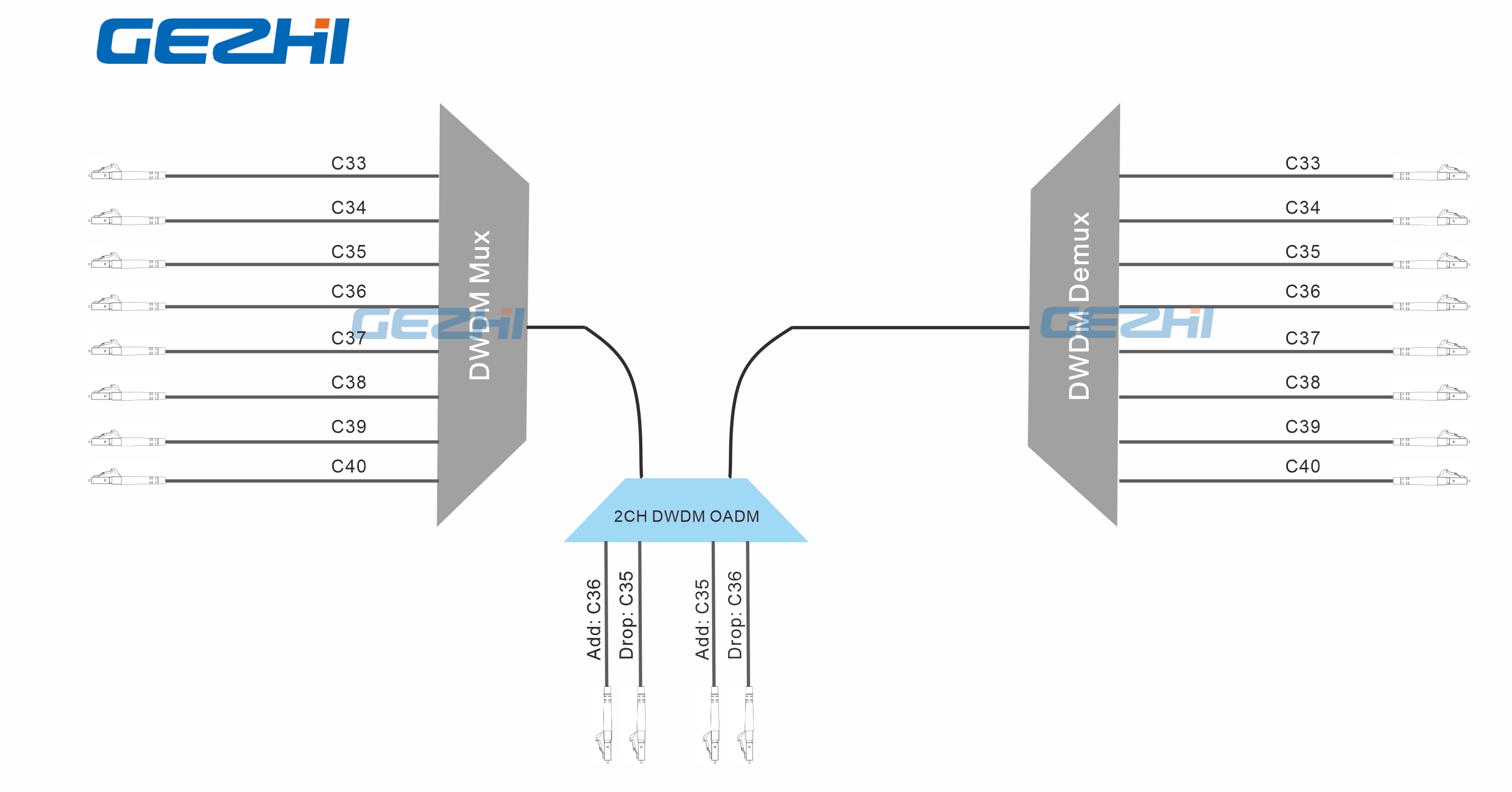

2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East Solution
