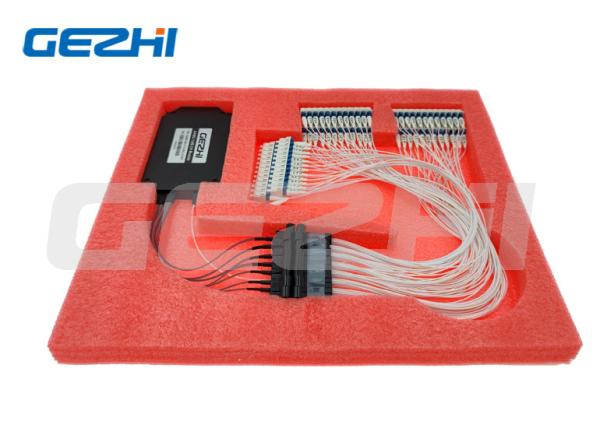

50GHz AAWG Multiplexer Demultiplexer Module Flat-top type C-band
wavelength
The 50GHz AAWG Multiplexer Demultiplexer are based on silica on
silicon technology, is designed for ITU channel spacing
applications where no electrical power is required. This AAWG
multiplexer demultiplexer operates at 50GHz spacing ITU Grid DWDM
wavelengths from C-band C15 to H62 total 96 channels, customized
wavelength is available. The low cost and high performance make it
the ideal solution for metro and long-haul DWDM applications.
GEZHI 50GHz 96ch AAWG Multiplexer demultiplexer is a scalable, high
density and standalone passive optical module that perfectly suited
to PON Networks, DWDM Transmission, Metro Area Networks, Long-haul
Networks, Building Blocks for VMUX and Building blocks for ROADM
applications.
Features of 50GHz AAWG Multiplexer Demultiplexer Module
Wide pass band
Low Insertion Loss
High Channel Isolation
High Stability and reliability
High Capacity For Data Center Applications
Innovative craftsmanship for maximum performance with high degree
of protection
Based on a athermal AWG technology with Flat-top shaped pass bands
Specification of 50GHz 96CH AAWG Multiplexer Demultiplexer Module
| Parameter | Specifications | Unit | Comment |
| Min | Max |
| Input Channel | 1 | | |
| Output Channel | 96 | | 80, 96 channels available |
| Channel Spacing | 50 | GHz | |
| 1dB Bandwidth |
0.18 | nm | Flat-Top Type |
| 3dB Bandwidth |
0.28 | nm |
| I.L | | 7 | dB | Worst case in ITU passband |
| I.L UNI. | | 1 | dB | |
| Ripple | | 0.7 | dB | Loss variation in ITU passband |
| PDL | | 0.5 | dB | Max. value in ITU passband |
| Adjacent Crosstalk | 22 | | dB | Worst case in ITU passband |
| Non-Adjacent Crosstalk | 27 | | dB | Worst case in ITU passband |
| Total Crosstalk | 20 | | dB | Cumulative crosstalk of all other channels |
| Return Loss | 40 | | dB | |
| Maximum Continuous Optical Power | | 250 | mW | Maximum input optical power |
| Chromatic Dispersion(CD) | -20 | +20 | ps/nm | |
| PMD | | 0.5 | ps | |
