1X2 Magneto Optical Switch Single Ended With SC/APC FC/APC Connector

Product Overview of 1x2 Magneto Optical Switch

High quality 1X2 Magneto-Optical Switch Single-ended

Magneto Optical Switch Single Stage 1X2

1X2 Magneto-Optical Switch Single stage features fast response and ultra-high reliability.These Fiber Optic switches are designed to meet the most demanding optical switching applications. 1X2 Magneto-Optical Switch(Single mode 1550nm) is is applicable for optical fiber communication networks and measurement instruments.

Features & Applications of 1x2 Magneto Optical Switch

Features
♦ Low voltage drive
♦ High reliability
♦High switching speed
♦ Better durability
♦ Fail-safe latching

Applications
♦ Optical channel blocking
♦ Fiber-optics sensing system
♦ Configurable Add/Drop
♦ System monitoring,Test&measurement

Specifications of 1x2 Magneto Optical Switch

Parameters	Unit	1x2 Single-ended
Wavelength Range	nm	1520~1580
Test Wavelength	nm	1550
Insertion Loss 2, 3	dB	1.0
Return Loss 2, 3	dB	≥50
Crosstalk 2	dB	≥40
PDL	dB	≤0.2
Repeatability	dB	≤±0.01
Operating Voltage	V	5.0
Durability	Cycles	≥ 30 Bllions
Switching Time	μs	≤100
Switching Type	n/a	Latching
Optical Power	mW	≤500
Operating Temperature	℃	–5~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Fiber Type		G657A1
Dimension	mm	(L )39x(W)9x(H)9.5

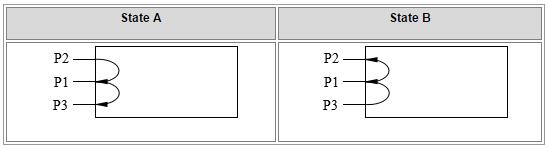

Magneto Optical Switch Single Stage 1X2 – Optical Route

Bidirectional

end 1x2 biidi.jpg

Unidirectional

end 1x2 uni.jpg

Odering Information of 1x2 Magneto Optical Switch

Type

Fiber Type

Operating Voltage

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

1X2U/S:

Unidirectional

(1X2)

2X1U/S:

Unidirectional

(2X1)

SM:

SM, 9/125

Others

5.0V

1550:

1550nm

Others

25:

250um

90:

900um

Others

05:

0.5m±5cm

10:

1.0m±5cm

15:

1.5m±5cm

Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

LP: LC/PC

LA: LC/APC

X: Other

FAQ

Q1:Can I have a sample order? What is your MOQ of 1x2 Magneto Optical Switch?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of 1x2 Magneto Optical Switch?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of 1x2 Magneto Optical Switch?
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
