Fiber Optical Switch Fast Switching time 1x128 Optical Switch with
LCD Display
Product Description
This 1x128 Optical switches Rackmount is composed of one input and
128 output optical fiber ports, which can selectively transmit,
redirect or block the optical power in the optical fiber
transmission line. These optical switches are bidirectional and can
be used in 1x128 or 128x1 directions. Optical fiber switches are
designed for optical fiber communication networks and measuring
instruments.
The front panel bulkheads can be fit with typical FC/APC, FC/UPC,
SC/APC, SC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC, MPO connector types
etc. Normally this 2RU 19” rackmount can install 1x24, 1x32, 1x48,
1x64 or customized Optical Switches.
Applications
FITL
Maintaining system
Optical Network Remote Monitoring Cable Monitoring
Automatic Measurement
Features
Channel and time interval of automatic scanning can be set up
LED display panel. Visual display, Convenient operation
SerialNet, High Reliability, High Stability
Transparent transmission signal. High stability and reliability
RS232 Control and RJ45 Ethernet Remote Management
Technical Index
| Parameter | Unit | 1x4 | 1x8 | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 | 1x128 |
| Wavelength Range | nm | 1260~1650 or customized |
| Testing Wavelength | nm | 1310/1550 or customized |
| Insertion Loss (Max) | dB | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤2.0 |
| Return Loss | dB | SM ≥ 50 |
| Crosstalk | dB | ≤-70 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.20 |
| Repeatability | dB | ≤0.02 |
| Switching Time | ms | ≤10 (Adjacent Channel) |
| Optical Power | mW | ≤500 |
| Fiber Type | um | 9/125 |
| Connector | / | FC, SC, LC, ST, SMA or customized |
| Monitor Port | / |
RJ45 & RS232 or customized |
| Working Power Supply (Plug Tyep) | V | AC:220V (50/60Hz) or DC:36V~72V |
| Operating Temperature | ℃ | -10~+60 |
| Storage Temperature | ℃ | -40~+85 |
| Rack mount Dimensions | mm | 1U L483XW230XH44.5 (Up to 16 channel) customization is available. |
2U L483XW230XH89 (Up to 36 channel) customization is available. 2U L483XW350XH89 (Up to 64 channel) customization is available. |
| 3U L483XW350XH133.5 (Up to 128 channel) customization is available. |
| 4U L483XW350XH178 (Up to 256 channel) customization is available. |
Ordering Information OSW-XxX-X-XX-X-XX-XX-XX-XX
| OSW | Mode | Wavelength | Package | Fiber Type | Fiber Diameter | Connector |
1x4 1x8 1x16 1x32 1x64 1x128 S=Specity | S=SM M=MM | 85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm S=Specify | 1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify | M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify | AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V | 00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify |
Panel to Explain

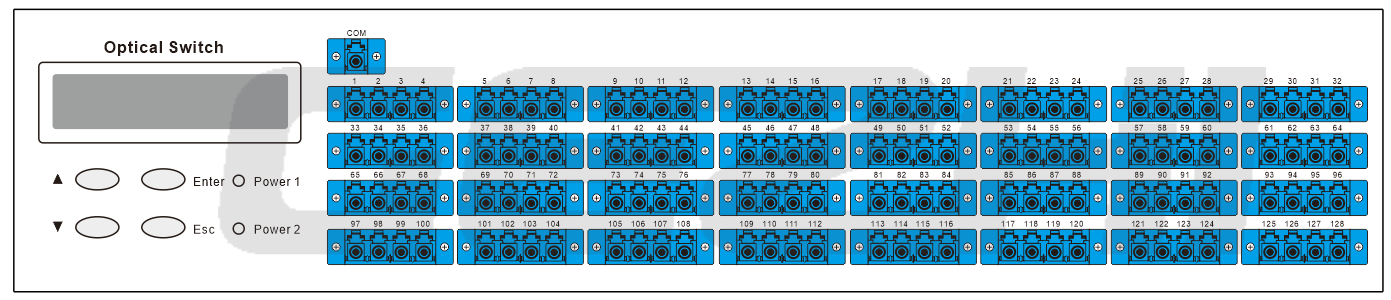

1x128 Fiber Optical Switch Rackmount Front Panel
Power: Master switch of power supply
RJ45:Communications network management interface ;
RS-232: Rs- serial interface ; RS232 serial communication
interface;
LCD:Devices that display information directly;
▲: Key to move up; ▼: Key to move down; Enter: Key to determine;
Esc: Key to cancel;
com,1~128:Fiber interface

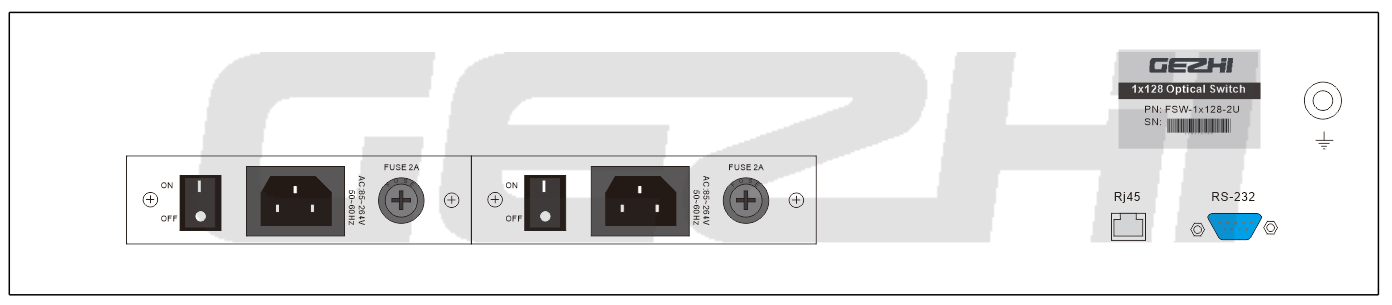

1x128 Fiber Optical Switch Rackmount Back Panel
AC:85~265V: Power cord interface;
ON/OFF: Master switch of power supply ;
Default Setting
address:01
RS-232:Baud rate:9600; Data bits:8 bit; Stop bit: 1 bit; Parity
bit:NONE;
RJ45: IP:192.168.1.100 ; PORT:5000; TCP/IP:TCP Server and UDP
(Fixed port:18888)
Communication Protocol:
“_”:A underline
1x128 Fiber Optical Switch Rackmount Optical Route
Communication protocol all in uppercase characters;
The device executes an instruction each time;
"<" As the start instruction; ">" As an end instruction
