Single Mode And Multimode Rackmount 1X16 Optical Switch For Secure Communications

Ask Lasest Price
Brand Name :	GEZHI or OEM
Model Number :	1x16 Optical Switch Rackmount
Certification :	CE RoHS,ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

Single Mode And Multimode Rackmount 1X16 Optical Switch For Secure Communications

Single mode and Multimode Rackmount 1X16 Optical Switch for Secure Communications

Product Description Rackmount 1X16 Optical Switch

Rack Mount 1X16 Optical Switches allow the automated and repeatable connection of one common fiber to 16 number of output or input fibers. These all-optical switches are bi-directional and can be used in either the 1x16 or 16x1 direction.Rack-Mounted Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This Fiber optical switch is available in any 1xN size up to 1x128.

Single Mode And Multimode Rackmount 1X16 Optical Switch For Secure Communications

Features

Low loss,High Reliability,High Stability
Many configuration possibilities
Easy-to-use Rackmount Housing,LCD Display
RS232 and Ethernet Interface,User Friendly

Applications

High-volume production testing
Testing of fiber,optical component
Dynamic Management of Optical Networks
Secure Communications

Specifications

Parameters		GEZHI-FSW-1X16
Operating wavelength	nm	850±40 / 1300±40	1260~1650
Test Wavelength	nm	850/1300	1310/1550
Insertion loss	dB	Typ:0.8 Max:1.0
Return loss	dB	SM≥55 MM≥30
Crosstalk	dB	≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.05
Lifetime	times	≥10⁷
Transmission power	mW	≤500
Switch time	ms	≤10(Sequence switch time of adjacent channel)
Operating temperature	℃	-10～+60
Storage temperature	℃	-40～+80
Relative Humidity	%	5 ~ 95
Supervision interface		Ethernet Interface and RS232( or RS-485 )
Power supply	V	AC 85-264V,50/60Hz OR DC(36-72)V
Dimensions	mm	1U L483XW200XH44 (Up to 20 channel) customization is available.
		2U L483XW303XH89 (Up to 64 channel) customization is available.
		3U L483XW303XH139 (Up to 128 channel) customization is available.
		4U L483XW303XH177 (Up to 256 channel) customization is available.

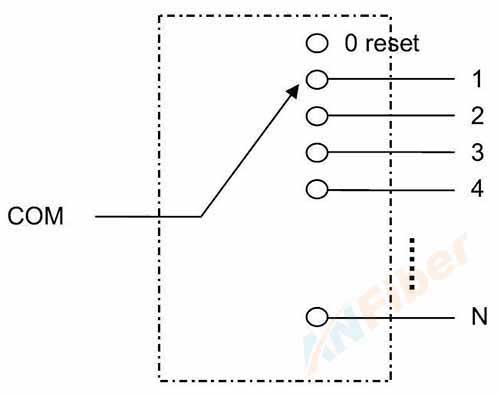

Optical Path of Rackmount Optical Switches

Ordering Information

N	A	B	C	D	E	F
Channel	Package	Mode	Wavelength	Voltage Type	Fiber type	Connector
1~32 32~64 64~128 128~256 256~512	1U 2U 3U 4U 6U 8U X: Other	S:SM M:MM X: Other	85: 850nm 13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Other	AC: 85-264V DC: 36-72V AC/ DC: 220V&48V	5:50/125 6:62.5/125 9: 9/125 X: Other	FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other
