Overview of 2x2A Optical Switch
2x2A Mechanical Optical Switch Module for System Monitoring
2X2A Mechanial Optical Switch
Gezhi 2x2A Fiber Optic Switch, which is famous for its high
performance, low insertion loss,Compact design and Miniature size,
2x2A optical switch is an ideal component for OADM,OXC,system
monitoring and protection. With compact package, 2x2A
opto-mechanical fiber optic switch can be easy to integrate into a
high density optical communication system.
Features & Applications of 2x2A Optical Switch
Features Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching | Applications R&D in Laboratory
System Monitoring
OADM
MAN(Metropolitan Area Network)
Network Security and Monitoring |
Specifications of 2x2A Optical Switch
| Parameters | Unit | GZ-FSW-2×2A |
| Wavelength Range | nm | 1260～1650 |
| Operating Wavelength | nm | 1310/1550 |
| Insertion Loss | dB | Typ:0.8 Max:1.0 |
| Return Loss | dB | ≥50 |
| Crosstalk | dB | ≥60 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.25 |
| Repeatability | dB | ≤±0.02 |
| Power Supply | v | 3.0 or 5.0 |
| Lifetime | times | ≥107 |
| Switch Time | ms | ≤8 |
| Transmission Power | mW | ≤500 |
| Operating Temperature | ℃ | -20～+70 |
| Storage Temperature | ℃ | -40～+85 |
| Weight | g | 25 |
| Dimension | mm | (L)48×(W)22×(H)10(±0.1～0.2mm) Customization is available |

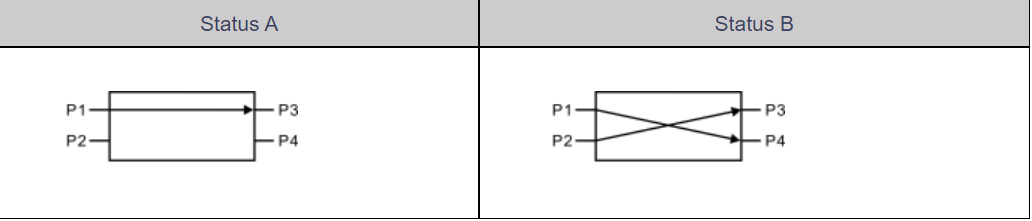

Optical Route of 2x2A Optical Switch
Odering Information of 2x2A Optical Switch
| X | X | XX | X | X | X | XX | X | XX |
| Name | Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| 2x2A Optical Switch | S=SM M=MM | 85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others | 3=3V 5=5V | L=Latching N=Non- Latching | 5=50/125 6=62.5/125 9=9/125 X=Others | 25=250um 90=900um 20=2.0mm 30=3.0mm X=Others | 1=1m 2=1.5m X=Others | 0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
FAQ
Q1:Can I have a sample order? What is your MOQ of 2x2A Optical Switch?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of 2x2A Optical Switch?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of 2x2A Optical Switch?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
