Product Overview of PM Cladding Power Stripper
High Stable and Reliable 1x1 PM Cladding Power Strippers Fiber
Amplifier
PM Cladding Power Strippers
GEZHI PM Cladding Power Stripper is made by Fusion Splice
technology with PM fiber in and PM fiber out. It features High
Strip Ratio and High Optical Power. The PM Cladding Power Stripper
will trasmit the signal power and at the same time remove the
residual pump light in the cladding. The high power version is
specially designed to withstand high CW Power while maintaining
high performance and stability. Various wavelength range and fiber
types are available.
|
Features & Applications of PM Cladding Power Stripper
Features:
- High Stripping Efficiency
- Low Signal Loss and Beam Quality Degradation
- High Extinction Ratio (for PM Fiber)
- Stable and Reliable
Applications:
- High Power Fiber Lasers
- Fiber Amplifiers
Specifications of PM Cladding Power Stripper
| Parameter | Specification |
|---|
| Port Configuration | 1x1 | | Signal Wavelength | 800 nm ~ 2000 nm | | Pump Wavelength | 800 nm ~ 1000 nm | | Signal Fiber (Note 2) | x/125 | x/250 | x/400 | | Cladding Attenuation | >20 dB | >18 dB | >18 dB | | Signal Insertion Loss | <0.13 dB | | Power Handling (Note 3) | 20W | 100W | 1000W | | Polarization Extinction Ratio (PM fiber) | >17 dB (Input PER >25 dB) | | Return Loss | >45 dB | | Pigtail | Standard 1m or custom | | Operating Temperature | 0~75°C | | Storage Temperature | -40~85°C |
| |

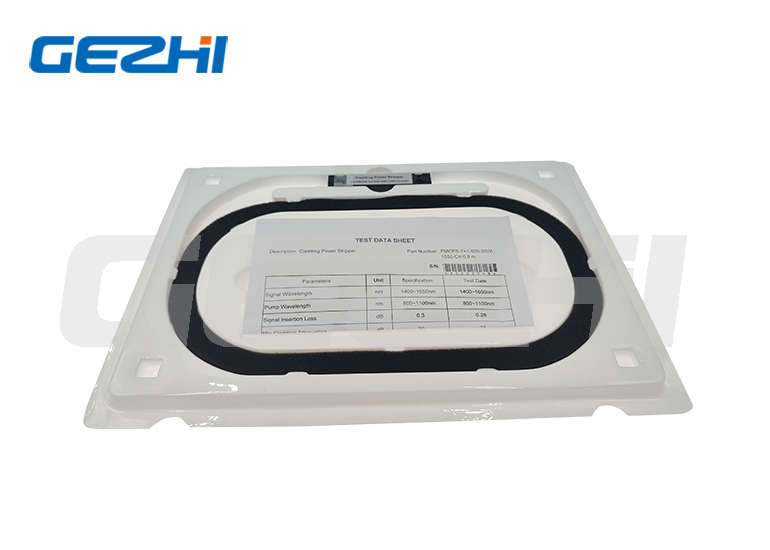

Package
FAQ
Q1:Can I have a sample order? What is your MOQ of PM cladding power
stripper?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of PM cladding power stripper?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
