    FTTX 3ports WDM Module FWDM 1310nm 1490nm 1550nm Optical Filter

    Ask Lasest Price
    Brand Name : GEZHI or OEM
    Model Number : 3 Ports Fiber Optic FWDM
    Certification : CE RoHS,ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 5000pcs per month
    • Product Details
    • Company Profile

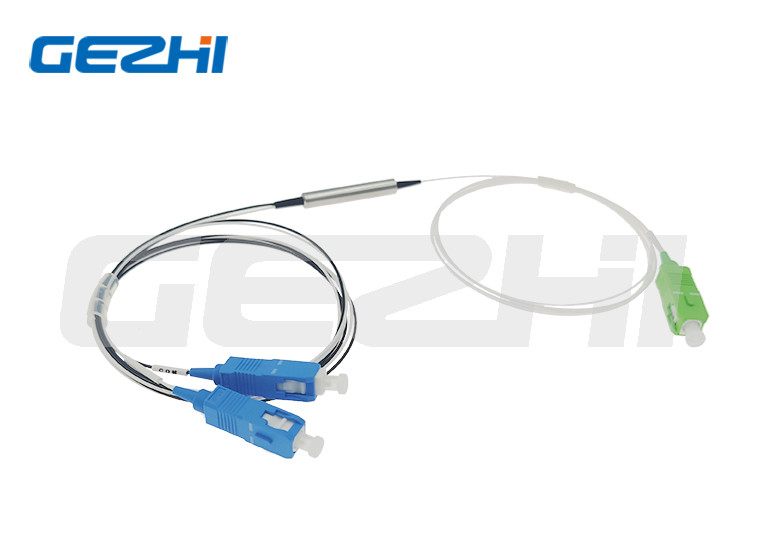

    FTTX 3ports WDM Module FWDM 1310nm 1490nm 1550nm Optical Filter

    FTTX 3 Ports Fiber Optic FWDM 1310nm 1490nm 1550nm Optical Filter


    Product Description

    Micro-Optical WDM utilizes thin film cocating technology and proprietary design of non-flux metal bonding micro optics packing.It provides low insertion loss.high channel isolation,low temperature sensitivity and expoxy free optical path.

    FTTX 3ports WDM Module FWDM 1310nm 1490nm 1550nm Optical Filter FTTX 3ports WDM Module FWDM 1310nm 1490nm 1550nm Optical Filter FTTX 3ports WDM Module FWDM 1310nm 1490nm 1550nm Optical Filter

    Features

    1.Wide Operating Wavelength Range
    2.Low insertion Loss
    3.Ultra Flat Wide passband
    4.High channel Isolation
    5.High stability and reliability
    6.Epoxy-free on Optical Path

    Application

    1.Testing Instruments
    2.FTTH Tri-Play system
    3.CATV link
    4.WDM system
    5.PON networks

    Specification

    ParametreMinTypicalMaxUnit
    Operating Temperature03070
    Operating Relative HumidityNot condensing595%
    Storage TemperatureNot condensing-4085
    Power handing50Mw
    COM port wavelength range12601560nm
    TRANS port wavelengthCATV154015501560nm
    REFL port wavelength 1DATA upstream126013101360nm
    REFL port wavelength 2DATA downstream148014901500nm
    Insertion Loss(excl.optical connector)COM to TRANS0.30.5dB
    COM to REFL0.250.4dB
    Isolation COM to TRANS@1490nm±10nm1490nm into CATV port15
    Isolation COM to REFL@1550nm±10nm1550nm into DATA port15
    Directivitity1310nm into CATV port47
    Return Loss(all ports)45
    Insertion loss thermal sensitivity0.005dB/℃
    Polarization dependent loss0.1dB
    Bending loss@1550nm@10mm radius,1 turn0.5dB
    Fiber typeCorning@SMF-28 Ultra;900um loose tube
    Fiber length,measured from edage of metral housing to fiber tip of connectorCOM51cm
    TRANS100cm
    REFL100
    Connector typeCOMSC/APC
    TRANSwithout connector
    REFLwithout connector
    WDM packaging tube length3839mm
    WDM packaging tube diametre5.56mm
    WDM tube electical isolationThe metal tube must be electrically isolated by means of shrink wrap covering tube over its full length

    Ordering Information

    WavelengthConfigurationPackage SpecFiber TypeFiber DiameterFiber LengthConnector

    XGS-PON

    S=Specify

    1=1unit combo

    2=2unit combo

    3=3unit combo

    4=4unit combo

    S=Specify

    S1= Steel tube φ5.5x35mm

    A9=ABS box 90x20x10mm

    A1=ABS box 100x80x10mm

    A2=ABS box 120x80x18mm

    A3=ABS box 140x115x15mm

    L1=LGX 129*29*130mm

    L2=LGX insert in 2slot Rack

    L4=LGX insert in 4slot Rack

    R1=19" 1 U Rack

    R2=2slot 19″1U Rack

    R4=4slot 19″1U Rack

    X=Customized

    9=9/125

    S=Specify

    25=250um

    90=900um

    20=2.0mm

    30=3.0mm

    S=Specify

    05=0.5m

    10=1.0m

    15=1.5m

    S=Specify

    00=none

    LP=LC/UPC

    LA=LC/APC

    SP=SC/UPC

    SA=SC/APC

    FP=FC/UPC

    FA=FC/APC

    S=Specify

    Product Packing
