Product Overview of 3 Ports FWDM

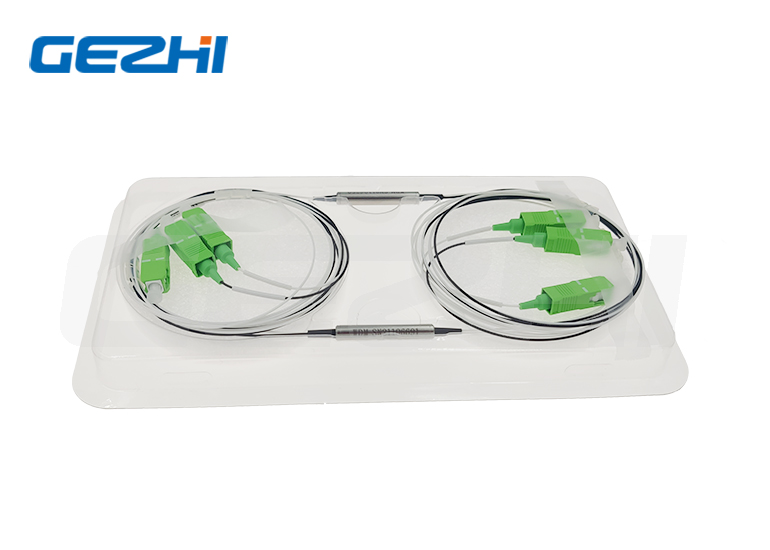

Excellent Thermal Stability 3 ports T1625nm R1310/1490/1550nm FWDM
for OTDR
3 ports T1625nm R1310/1490/1550nm FWDM
Gezhi Optical Fiber Filter WDM FTTX 1625nm is made by special
optical components and advanced technology, it can deeply let
1600-1670nm wavelength pass but efficiently filter out 1250-1590nm
wavelength. This product is mainly used in optical fiber on-line
testing. It is ideal component of 1625/1650nm optical fiber
filtering.
It enable testing fibers that are bearing traffic with an OTDR by
inserting an out-of-band wavelength (1625 or 1650 nm). The OTDR
signal is added to the data signal by using a wavelength division
multiplexer (WDM). At the other fiber extremity, a filter blocks
the OTDR signal. When OTDR measurement range can cover more than
one fiber span, a bypass can extend the OTDR signal to the adjacent
span.
Features of 3 Ports FWDM
Telcordia GR1221,RoHS Compliant
Optical path epoxy free and excellent thermal stability
Low insertion loss and high isolation
Wide and flat passband
Specifications of 3 Ports FWDM
| Parameter | Specification | | Central wavelength (nm) | 1625 | | Pass band wavelength(nm) | 1600~1670 | | Reflection wavelength(nm) | 1260~1590 | | Insertion Loss | Pass (C→T)@PB | ≤0.8 | | Reflect (C→R)@SB | ≤0.6 | | Isolation(Pass) | ≥40 | | Isolation(Ref) | ≥15 | | Directivity (dB) | ≥55 | | Return loss (dB) | ≥45 | | PDL(dB) | ≤0.10 | | Insertion loss thermal stability(dB) | ≤0.005 | | Power handling (mW) | ≤500 | | Operating temperature(℃) | 0 ~ +70 | | Storage temperature(℃) | -40 ~ +85 | | Dimensions(mm) | Φ5.5xL38mm |
| |

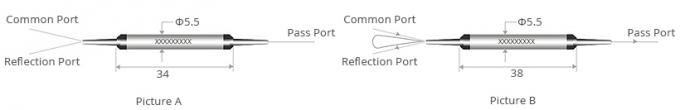

Mechanical Drawing
Odering Information of 3 Ports FWDM
| Wavelength | Package Spec | Fiber Type | Fiber Diameter | Fiber Length | Connector | | T1625R1310/1490/1550 | S1= Steel tube φ5.5x38mm A0=ABS box 90x20x10mm A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x15mm L1=LGX 129*29*130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1 U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack X=Customized | 9=9/125 X=Others | 25=250um 90=900um 20=2.0mm 30=3.0mm X=Others | 05=0.5m 10=1.0m 15=1.5m X=Others | 00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
| |
