    High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory

    Ask Lasest Price
    Brand Name : GEZHI or OEM
    Model Number : PM Manual VOA
    Certification : CE RoHS,ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 5000pcs per month
    • Product Details
    • Company Profile

    High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory

    High Precision 532-2050nm PM Manual Variable Optical Attenuator for Optics Laboratory

    Product Description

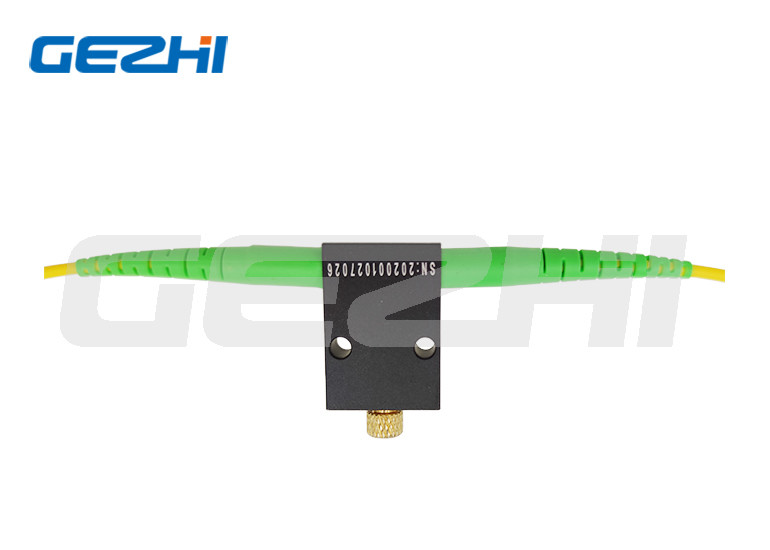

    532-2050nm Polarization Maintaining (PM) Manual Variable Optical Attenuator is a fiber component which can
    control the attenuation of the optical power by adjusting the screw, the attenuation value can be up to 60dB, it's
    widely used in optical power testing system, fiber line protection and optical power monitoring field.

    High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory

    Features

    High Precision
    Wide Attenuation Range
    Low Insertion Loss

    Applications

    Optical Power Monitoring
    Fiber Line Protection
    Testing System
    Lab And Research

    Specification

    ParameterUnitValue
    Center Wavelengthnm2050, 20001550, 13101064, 980850, 780633, 532
    Operating Wavelength Rangenm±40±40±20±20±20
    Attenuation RangedB0.8~600.6~600.6~600.6~600.8~60
    Max. Insertion LossdB0.80.60.60.60.8
    Min. Extinction Ratio at 23℃dB1820202018
    Min. Return LossdB50
    Adjustment PrecisiondB0.02
    Max. Power HandlingmW500
    Fiber Type-PM Panda Fiber
    Operating Temperature0 ~ +70
    Storage Temperature-40~+85
    Package Dimensionsmm26x18x8

    For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
    The default connector key is aligned to slow axis.

    Package Dimensions

    Ordering Information

    PMMVOA-1111-2-333-45-6-77

    1111 - Wavelength:

    -Center Wavelength:

    2000=2000nm, 1550=1550nm, 1310=1310nm, 1064=1064nm, SSSS=Specified

    2 - Working Axis:

    -Axis Alignment

    B=Both axis working, F=Fast axis blocked

    333 - Fiber Type:

    -Fiber Type:

    001=PM1550, 002=PM1310, 003=PM980, 045=PM1950, SSS=Specified

    4 - Package Dimension:

    -Package Dimension:

    0=26x18x8mm, S=Specified

    5 - Pigtail Type:

    -Pigtail Type:

    0=bare fiber, 1=900μm loose tube, S=Specified

    6 - Fiber Length:

    -Fiber Length:

    0.8=0.8m, 1.0=1m, S=Specified

    77 - Connector Type:

    -Connector for In & Out:

    0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
