    8 Channel DWDM MUX DMUX 1U Rackmount Low Insertion Loss

    Ask Lasest Price
    Brand Name : GEZHI or OEM
    Model Number : DWDM04MXXX
    Certification : CE RoHS,ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000Channel per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    8 Channel DWDM MUX DMUX 1U Rackmount Low Insertion Loss


    Description of 8CH DWDM


    Low Insertion Loss 8 Channel DWDM MUX DMUX 1U Rackmount


    8CH DWDM 1U Rack


    GEZHI 8 Channel DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for Long Haul, Metro, and Access Application.



    Features & Applications of 8CH DWDM

    Features:

    • Low Insertion Loss
    • High Isolation
    • Low PDL
    • Compact Design
    • Good channel-to-channel uniformity

    Applications:

    • DWDM System
    • PON Networks
    • CATV Links
    • Fiber Optical Amplifier
    • Long-haul transport

    Specifications of 8CH DWDM

    ParameterUnit8+1CH DWDM Mux+Demux
    Channel Number--8+1CH
    Operation WavelengthnmC53~C60+Upgrade+1% Monitor Port
    Channel Central WavelengthnmITU-T Grid @DWDM
    Channel Passbandnm0.8 (100Ghz)
    Insertion Loss @PBdB<2.8
    Mux 1% monitoringdB<24.3
    Demux 1% monitoringdB<21.5
    Isolation @Adjacent ChanneldB>30
    Isolation @Non-adjacent ChanneldB>34
    Isolation @Reflect ChanneldB>15
    Passband RippledB<0.5
    Polarization Dependent LossdB<0.15
    Polarization Mode Dispersionps<0.1
    Directivity & Return LossdBDirectivity: >50 Return Loss:>45
    Power HandlingmW<500
    Connector--SC/UPC or customized
    Fiber Type--SMF-28e or Customized
    Operating Temperature-20 ~ +70
    Storage Temperature-40 ~ +85
    Package Dimensionmm4slot 19" 1U Rackmount

    8Channel DWDM Filter Cascading



    8CH DWDM Mux Demux Module Dual Fiber

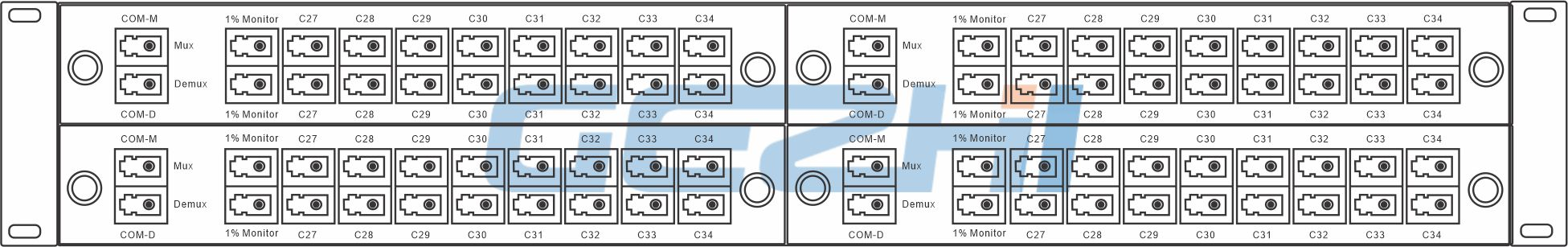

    4slot Rackmount


    FAQ

    Q1:Can I have a sample order? What is your MOQ of 8CH DWDM Mux Demux?

    A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
    Q2: What's the Lead time?
    A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
    Q3: What are the payment terms?
    A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
    Q4: What is your warranty time of 8CH DWDM Mux Demux?
    A4: 3 years' warranty.
    Q5: Could I use our own logo, label and package?
    A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
