Product Overview of 1x4 Mems Optical Switch

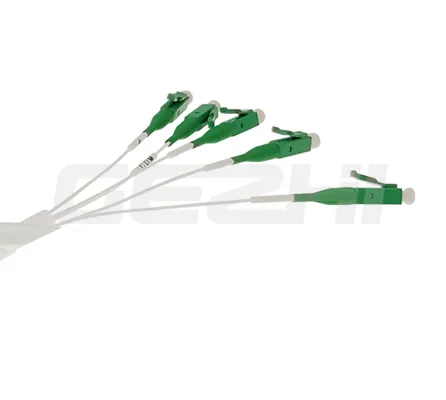

1x4 Fiber MEMS Optical Switches Module Micro-Electro-Mechanical System Switch with LC/APC connector
1x4 MEMS Optical Switches Module
GEZHI Photonics offers MEMS optical switches support wide band
wavelength and are compact, fast switching, High stability and with
high channel number configuration. Its widely used in MCS, OXC,
IODF, OLM, OTDR or fiber sensing etc. Currently configurations of
GEZHI MEMS Switches includes 1x2, 1x4, 1x8 and 1x16 configurations
for single-mode or multimode fibers, available in either latching
or non latching variants.
|
Features of 1x4 Mems Optical Switch
Features:
♦Low Insertion loss
♦Wide Wavelength Range
♦Low Crosstalk
♦High Stability, High Reliability
♦Epoxy-free on Optical Path
♦Latching and Non-latching
Applications:
♦ Optical Network
♦Protection/Restoration
♦Optical Singnal Routing
♦Transmitter and receiver protection
♦Network Test System
Specifications of 1x4 Mems Optical Switch
| Parameters | Unit | MFSW-1×N (N≤16) | | Operating Wavelength | nm | 1260~1650 for SM, 850/1310 for MM | | Insertion Loss | dB | N≤8 | ≤1.0 | | 8<N≤16 | ≤1.2 | | 16<N≤32 | ≤1.5 | | 32<N≤64 | ≤1.7 | | 64<N≤144 | ≤2.2 | | 144<N≤256 | ≤2.4 | | WDL | dB | ≤ 0.3 | | TDL | dB | ≤ 0.3 | | PDL | dB | ≤ 0.15 | | Return Loss | dB | SM ≥ 45, MM ≥ 30 | | Crosstalk | dB | SM ≥ 45, MM ≥ 30 | | Repeatability | dB | ≤ ±0.02 | | Switching Time | ms | ≤ 8 | | Durability | times | ≥ 10 billion | | Switching Mode | | Non-latching | | Power Supply | V | DC 5V ± 10% | | Operating Current | mA | N≤16 | ≤50 | | 16<N≤64 | ≤250 | | 64<N≤144 | ≤350 | | 144<N≤256≤ 500 | ≤500 | | Optical Power | mW | ≤ 500 | | Operating Temperature | °C | -20 ~ +85 | | Storage Temperature | °C | -40 ~ +85 | | Operating Humidity | % | 5 ~ 95 | | Package Dimension | mm | P1: 31x24x11 | N≤64, bare fiber | | P2: 60x24x11 | N≤16, 0.9mm loose tube | | P3: 90x55x12 | 16<N≤64, 0.9mm loose tube | | P4: 100x100x12 | 64<N≤144, 0.9mm loose tube | | P5: 110x141x12 | 144<N≤256, 0.9mm loose tube |
| |
Inner Packaging of 1x4 Mems Optical Switch
FAQ
Q1:Can I have a sample order? What is your MOQ of 1x4 Mems Optical
Switch?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time of 1x4 Mems Optical Switch?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
