Low insertion loss Filter WDM GPON 1310/1490 XGS-PON 1270/1577 Video 1550 OTDR 1625nm WDM filtro wdm1r Module

Product Overview

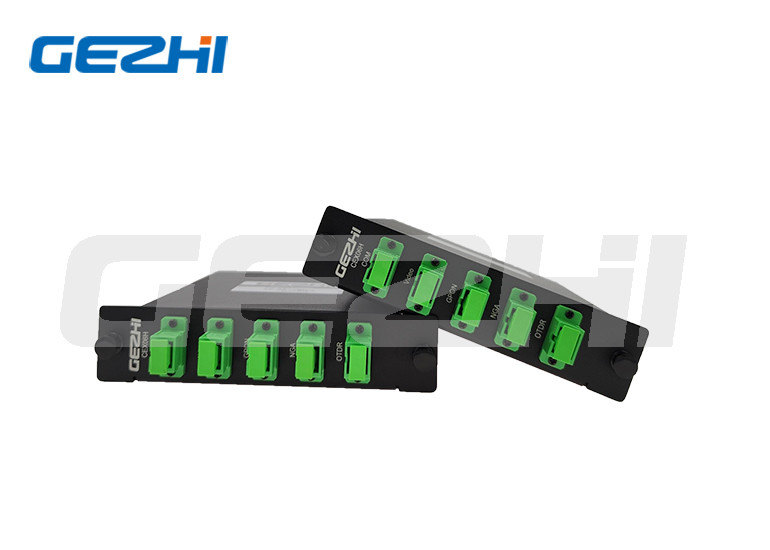

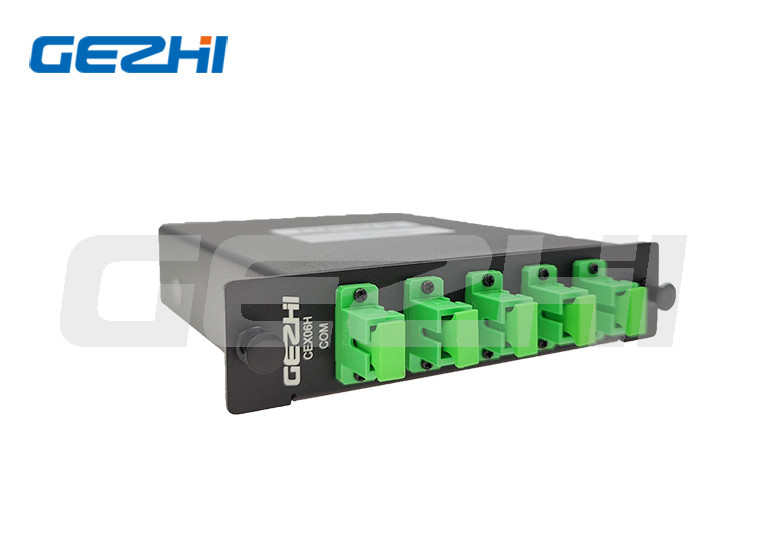

GPON XGS-PON Video OTDR WDM Module

Our CEX WDM series is designed for next generation passive optical
networks (NGPON), a new optical access system that coexists with
GPON on the same ODN. These WDM devices, including GPON, XGS-PON,
RF video, and OTDR combiners, are designed to accommodate NGPON1
and NGPON2 TWDM wavelengths to maximize the density and enhance the
speed of optical distribution network.

Features:
♦ Low insertion loss
♦ Low PDL
♦ High channel isolation
♦ Excellent environmental reliability

Application:
♦ WDM system
♦ CATV
Technical Index
ParametersUnitI-FWDM Device
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50,1490±10, 1550±10
1610±10, 1625±25, 1650±20
nm1T1550 R1310/1490
2T1490 R1310/1550
3T1310 R1490/1550
4T1550/1610 R1310/1490
5T1550/1625 R1310/1490
6T1625 R1310/1490/1550
7T1650 R1310/1490/1550
Insertion LossdBTransmission: ≤ 0.6
Reflection: ≤ 0.4
Transmission Channel IsolationdB≥ 30
Reflection Channel IsolationdB≥ 17
PDLdB≤ 0.1
Wavelength thermal stabilitynm/℃≤ 0.003
Insertion loss thermal stabilitydB/℃≤ 0.005
Return lossdB≥ 45
Optical PowermW≤ 500
Operating Temperature℃-10 ~ +70
Storage Temperature℃-40 ~ +85
Relative Humidity%5 ~ 95
DimensionmmΦ5.5×34Φ4.2×2590×20×10
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss
per connector.

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.

Low insertion loss Filter WDM GPON 1310/1490 XGS-PON 1270/1577 Video 1550 OTDR 1625nm WDM filtro wdm1r Module

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Gezhi Photonics (Shenzhen) Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Filter WDM products from this supplier

Find Similar Products By Category:

Telecommunications

Hot Searches:

Parameters	Unit	I-FWDM Device
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20	nm	1	T1550 R1310/1490
		2	T1490 R1310/1550
		3	T1310 R1490/1550
		4	T1550/1610 R1310/1490
		5	T1550/1625 R1310/1490
		6	T1625 R1310/1490/1550
		7	T1650 R1310/1490/1550
Insertion Loss	dB	Transmission: ≤ 0.6
		Reflection: ≤ 0.4
Transmission Channel Isolation	dB	≥ 30
Reflection Channel Isolation	dB	≥ 17
PDL	dB	≤ 0.1
Wavelength thermal stability	nm/℃	≤ 0.003
Insertion loss thermal stability	dB/℃	≤ 0.005
Return loss	dB	≥ 45
Optical Power	mW	≤ 500
Operating Temperature	℃	-10 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	Φ5.5×34	Φ4.2×25	90×20×10
Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector.
