1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box

Ask Lasest Price
Brand Name :	GEZHI or OEM
Model Number :	1x96 Channel AWG DWDM mux Demux Module
Certification :	CE RoHS,ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	5000pcs per month

Add to Cart

Product Details
Company Profile

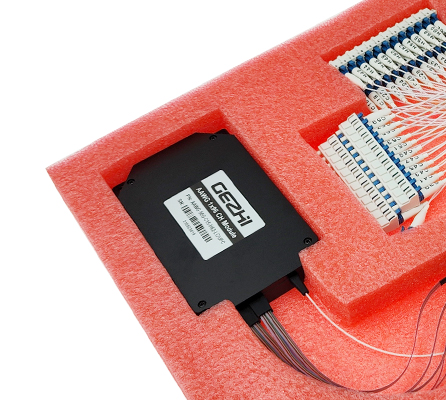

1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box

Product Overview

50GHz 96CH Athermal AWG DWDM Mux Demux

The 96CH Mux Demux is a high density, low loss and standalone
passive optical module that provides excellent solution for
infrastructure savings by aggregating up to 96CH DWDM channels at a
single site. All 96CH channels are spread over the C-band per ITU-T
100GHz spacing between channels using high quality AAWG technology.
It's perfectly suited to transport PDH, SDH / SONET, ETHERNET
services over WWDM, CWDM and DWDM in optical metro edge and access
networks. GEZHI Photonics Supply various type package like Metal
box, Rackmount or customized Package.

FEATURES AT A GLANCE

High density Channel

Customized Package type

Single Fiber or Dual fiber available

High Stability & Reliablity

Low Insertion Loss

1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box

Technical Index

Parameter

Unit

AAWG Module

Channel

Channel Spacing

GHz

100

Chip Type

Gaussian Type

Flat Top Type

1dB Channel Bandwidth

>0.2

>0.18

>0.38

>0.18

3dB Channel Bandwidth

>0.4

>0.28

>0.58

>0.28

Insertion Loss

<4.5

<6.5

<5.5

<7.0

Adjacent Crosstalk

>25

>22

>25

>22

Non-adjacent Crosstalk

>30

>27

>30

>27

Total Crosstalk

>22

>20

>22

>20

Return Loss

>40

Ripple

<0.7

PDL

<0.5

PMD

<0.5

Chromatic Dispersion

Ps/nm

±20

Operating Temperature

℃

-5~+65

Storage Temperature

℃

-40~+85

Metal Box Package Size

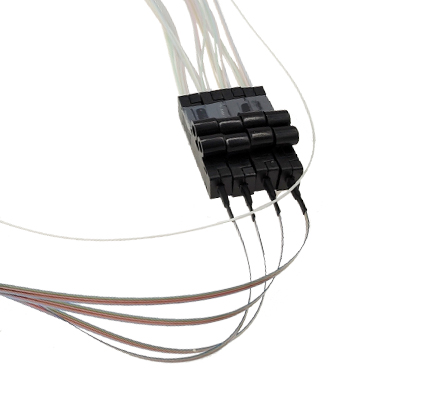

Chip type of Athermal AWG Module

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 1 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
