CEX WDM1R multilexerGPON XGS-PON FWDM module optical filter

Ask Lasest Price
Brand Name :	GEZHI or OEM
Model Number :	CEX02A0XX
Certification :	CE RoHS,ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100000Channel per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

CEX WDM1R multilexerGPON XGS-PON FWDM module optical filter

Description of WDM1R GPON / XGPON Filter WDM Multiplexer

CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter

GPON XGS-PON WDM Module

Our CEX WDM series is designed for next generation passive optical networks (NGPON), a new optical access system that coexists with GPON on the same ODN. These WDM devices, including GPON, XGS-PON, RF video, and OTDR combiners, are designed to accommodate NGPON1 and NGPON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution network.

Features of WDM1R GPON / XGPON Filter WDM Multiplexer

Custmized Wavelength & Channel:

GPON : 1290-1330 & 1480-1500nm

XGS-PON : 1260-1280 &1575-1580

OTDR : 1625-1650nm
RF Video : 1550-1560nm
NG-PON2 : 1524-1544 & 1596-1603nm

Various Package Type:
ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

Specifications of WDM1R GPON / XGPON Filter WDM Multiplexer

Parameter	Unit	CEX WDM Module
Pass channel wavelength - GPON	nm	1290~1330 & 1480~1500
Pass channel wavelength - XGS-PON	nm	1260~1280 & 1575~1580
Insertion Loss (dB) COM @GPON	dB	<0.8 dB
Insertion Loss (dB) COM @XGS-GPON	dB	<1.2 dB
Isolation - COM - XGS-PON @GPON	dB	>30
Isolation - COM - GPON @XGS-PON	dB	>30
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

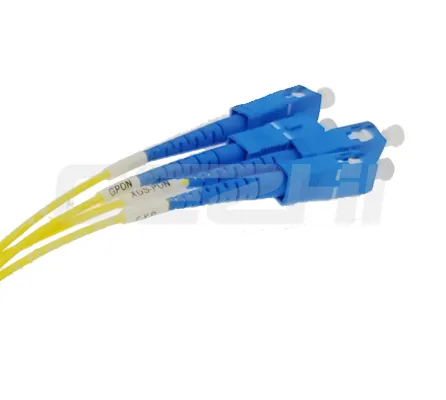

CEx Multiplexer Module ABS Box Package

FAQ

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer of WDM1R GPON / XGPON Filter WDM Multiplexer. We can do OEM/ODM business.
Q: How long is your delivery time?
A: General delivery time: 5~14 days.
Q: What is your terms of payment?
A: 100% T/T inadvance.
Q: What is the warranty ?
A: 3years warrangty time.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;

Any questions,please feel free to contact us,we will provide quality services for you.
