GEZHI Photonics 1x32 Ports Optical Network Switch FTTx Solutions 1310/1550nm

Ask Lasest Price
Brand Name :	GEZHI or OEM
Model Number :	OSW-1x32-13/15
Certification :	CE RoHS,ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100000Channel per month

Add to Cart

Product Details
Company Profile

GEZHI Photonics 1x32 Ports Optical Network Switch FTTx Solutions 1310/1550nm

Product Overview

1x32 Multi Channel Optical Switches

The 1X32 Opto-Mechanical Optical Switches consists of 1 input and N
output fiber ports that selectively transmits, redirects,or blocks
optical power in a fiber optic transmission line.

These all-optical switches are bi-directional and can be used in
either the 1xN or Nx1 direction.Fiber optical switches is designed
for use in optical fiber communication networks and measurement
instruments.

Features
More Than 128 Channels
Low Loss and High Reliability
Parallel Interface (TTL)
Modularized Design
Epoxy-free on Optical Path

Application
Ring Network
Remote Monitoring in Optical Network
Testing of Fiber, Optical Component

PRODUCT SPECIFICATIONS

Parameter	Unit	OSW-1x32
Wavelength Range	nm	850±40/1300±40	1260～1650
Operating Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	<1.2	<1.2
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	3.0 or 5.0
Lifetime	times	≥107
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	(L)27.0×(W)12.0×(H)8.2

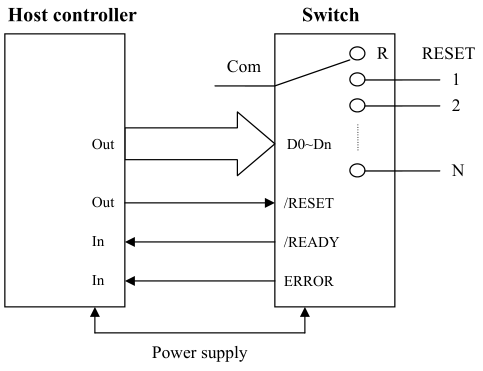

1xN Optical Switches Control Chart

FAQ

Q1:Can I have a sample order? What is your MOQ?A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
