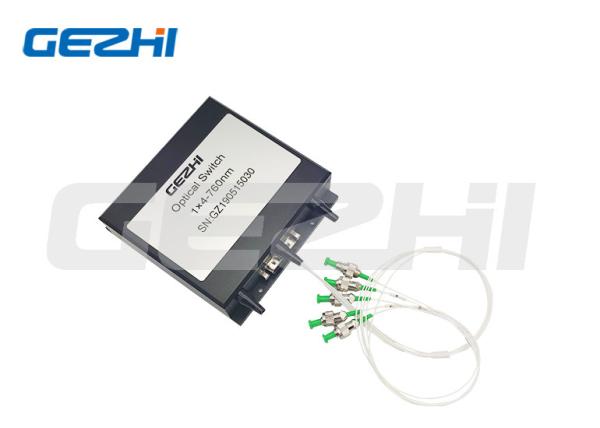

Product Overview

Low Insertion Loss

More Than 128 Channels
High Stability & Reliability
Parallel Interface (TTL)
Modularized Design
Customzied Wavelength available

PRODUCT SPECIFICATIONS

Parameter	Unit	OSW-1x4
Wavelength Range	nm	850±40/1300±40	1260~1650
Operating Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	<1.2	<1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	5.0 or 12v
Lifetime	times	≥107
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	135×64×32

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
