    MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components

    Ask Lasest Price
    Brand Name : Gezhi or OEM
    Model Number : 1x32-MEMS-13/15-aa
    Certification : CE RoHS,ISO9001
    Price : USD >= 1 pieces $1070
    Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram, T/T
    Supply Ability : 1000 Piece/Pieces per Day
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components


    Product Description

    MEMS 1X32 optical switch with standard single-mode, multi-mode, and PM fiber components

    1x32Inside the switch package both the CMOS/TTL compatible driver. The array of MEMS optical switches can be controlled individually and are bidirectional so they can be used in either a 1xN or Nx1 orientation.

    GEZHI's MEMS 1x32 optical switches offer excellent optical performance, high reliability over a very long lifetime. They have been tested and proven in the telecommunication, aerospace and other demanding applications.


    FEATURES AT A GLANCE


    SerialNet, High Reliability, High Stability

    LCD display panel. Visual display, Convenient operation

    Transparent transmission signal. High stability and reliability

    Channel and time interval of automatic scanning can be set up

    RS232 Control and RJ45 Ethernet Remote Management


    Applications

    FITL

    Automatic Measurement

    Optical Network Remote Monitoring Cable Monitoring

    Maintaining system



    PRODUCT SPECIFICATIONS


    ParameterUnit1x81x121x161x241x321x641x1281x256
    Wavelength Rangenm850/1310 for MM or 1260~1650 for SM or customized
    Testing Wavelengthnm850/1310, 1310/1550 or customized
    Insertion Loss (Max)dB≤1.0≤1.5≤1.5≤1.7≤1.7≤2.0≤2.2≤2.4
    Return LossdBMM ≥ 30, SM ≥ 45
    CrosstalkdBMM ≥ 30, SM ≥ 45
    PDLdB≤0.10
    WDLdB≤0.30
    TDLdB≤0.30
    RepeatabilitydB≤0.02
    Switching Timems≤8 (Adjacent Channel)
    Optical PowermW≤500
    Fiber Typeum9/125
    Connector/FC, SC, LC, ST, SMA or customized
    Monitor Port/RJ45 & RS232 or customized
    Working Power Supply (Plug Tyep)VAC:220V (50/60Hz) or DC:36V~72V
    Operating Temperature-10~+60
    Storage Temperature-40~+85
    Rack mount Dimensionsmm1U L483XW230XH44.5 (Up to 32 channel) customization is available.
    2U L483XW230XH89 (Up to 128 channel) customization is available.
    3U L483XW230XH133.5 (Up to 256 channel) customization is available.

    Ordering Information MEMS-1xN-X-XX-X-XX-XX-XX-XX

    MEMSModeWavelengthPackageFiber TypePower SupplyConnector

    1x4

    1x8

    1x16

    1x32

    1x64

    1x128

    S=Specity

    S=SM

    M=MM

    85=850nm

    13=1310nm

    15=1550nm

    85/13=850/1300

    13/15=1310/1550nm

    S=Specify

    1U=1U Rackmount

    2U=2U Rackmount

    3U=3U Rackmount

    4U=4U Rackmount

    S=Specify

    M5=50/125

    M6=62.5/125

    S9=9/125

    S=Specify

    AC=Single 85~265V

    DC=Single 36~72V

    AA=Dual 85~265V

    DD=Dual 36~72V

    AD=AC85~265V+DC36~75V

    00=None

    FP=FC/UPC

    FA=FC/APC

    SP=SC/UPC

    SA=SC/APC

    LP=LC/UPC

    LA=LC/APC

    S=Specify

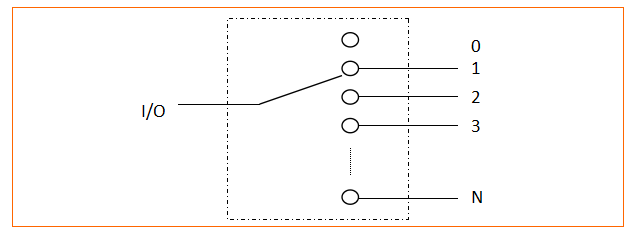

    Optical Route
