Factory LC OM3/OM4 8/12/24f MPO/MTP fiber optic patch cord MPO
Features Laser-Optimized multimode OM4 fiber Factory-terminated provide consistent quality, high performance and
reduce installation time •00% tested for low insertion loss performance and high back
reflection Optimized performance – available in elite MTP and discrete premium
connector upon request | Applications Data Center Optical System Access network Storage area networking 40GbE & 100GbE protocol |
Specification
| Performance Level | Standard | Elite | | Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) | | MPO/MTP | MM OM4 | 8F/APC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | | 12F/APC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | | 24F/APC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | | 8F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | | 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
| |
Order Information

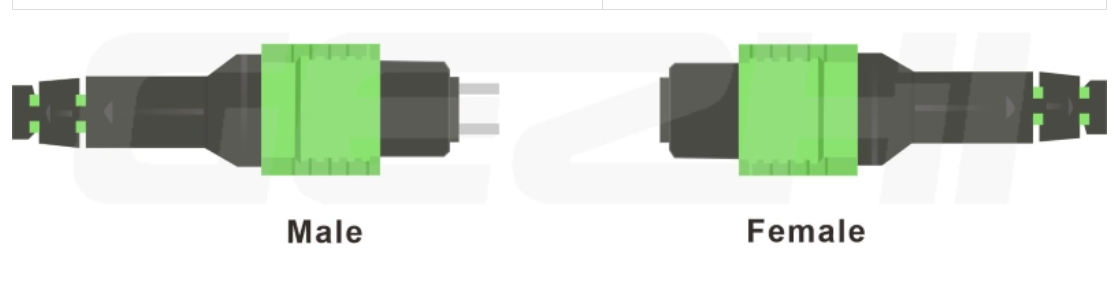

Type | Mode | Fiber Count | Polarity | Grad | Connector A | Connector B | Polishing | Length | PCMPO | 2=OS2 3=OM3 4=OM4 5=OM5 | 08=8 Fibers 12=12 Fibers 24=24 Fibers 36=3x12 Fibers 48=4x12 Fibers 96=8x12 Fibers 144=12x12 Fibers | A=Type A B=Type B C=Type C | S=Standard E=Elite | M=Male F=Female | M=Male F=Female | P=UPC A=APC | 01=1M 02=2M 05=5M 10=10M S=Specify |
|
Application Diagram
1. Custom Fiber Count
2. Custom Polarity
To properly send data over fiber cable, a link’s transmit signal
(Tx) at one end of the cable must match the corresponding receiver
(Rx) at the other end. And the role of polarity, which defines the
direction that the signal travels, is to make sure that this
correspondence is maintained. Fiber polarity is one area that seems
to cause a lot of confusion in our industry – especially when it
comes to multifiber MPO solutions used in parallel optic
applications.
MPO connectors also include a key on the top side of the connector
and a white dot on the side to indicate the location of Position 1.
The orientation of the key is critical when it comes to polarity.
There are also three different types of MPO cables – Type A, Type B
and Type C as below pictures:
3. Custom Connectors
Quality Control
Our Certificate
Packing & Shipping
