1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch

Ask Lasest Price
Brand Name :	Gezhi or OEM
Model Number :	OLP-1+1-13/15-UU
Certification :	CE RoHS,ISO9001
Price :	USD >= 1 pieces $100
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000 Piece/Pieces per Day
Delivery Time :	7 Days

Add to Cart

Product Details
Company Profile

1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch

Product description

Lc/upc olp 1+1 Optical Line Protection Switch

Optical Line Protection System (OLP) uses vacant optical fiber from different route to build a backup path. By real-time monitoring the power status in working fiber, it can automatically switch from working fiber to backup fiber when the power value of working fiber lower than a user defined threshold . OLP will provide you a more reliable, flexible and high secure optical transmission network .It is widely used for protecting backbone and important business line.

Feature

Low insertion loss, Fast switchingReal-time monitoring power level of fiber
LED display panel. Visual display
RS232 Control & RJ45 Ethernet Remote Management

1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch

Technical Parameters

Parameters	Unit	OLP-1:1	OLP-1+1	OLP-1-1
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Insertion Loss	dB	TX<1.2,RX<1.2	TX<4,RX<1.2	<1.2
Return Loss	dB	SM ≥ 45
Crosstalk	dB	SM ≥ 50
PDL	dB	≤ 0.20
WDL	dB	≤ 0.30
PD dark current	nA	＜1
PD responsivity	mA/W	24 ~ 40
PD report accuracy	dB	±0.5 (at -50 to 23 dBm)
Operating voltage	V	4.5 ~ 5.5
Operating current	mA	80 ~ 120
Operating Temperature	℃	-5 ~ +60
Storage Temperature	℃	-30 ~ +80
Dimension	mm	120×80×18

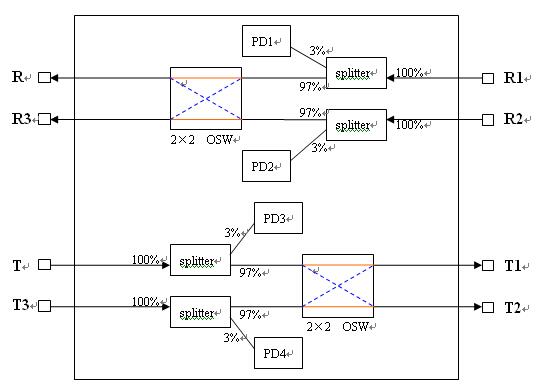

OLP Module(Multi Channel Optical Switch) Working Theory

1:1

OLP module 1 1.jpg

1+1

OLP module 1+1.jpg

1-1

OLP module 1-1.jpg

Dimension

olp module dimension.jpg

Ordering Information

Type

Fiber Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

Dimension

Optical Line Protection System Module
1:1 :OLP 1:1
1+1:OLP 1+1
1-1: OLP 1-1

X: Others

SM: SM, 9/125
X: Others

1310: 1310nm
1550: 1550nm
1310/1550:
1310/1550nm
X:Others

90:900um
X: Others

05: 0.5m±5cm
10: 1.0m±5cm
X: Others

OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others

01: 120×80×18(ABS)
X: Others
