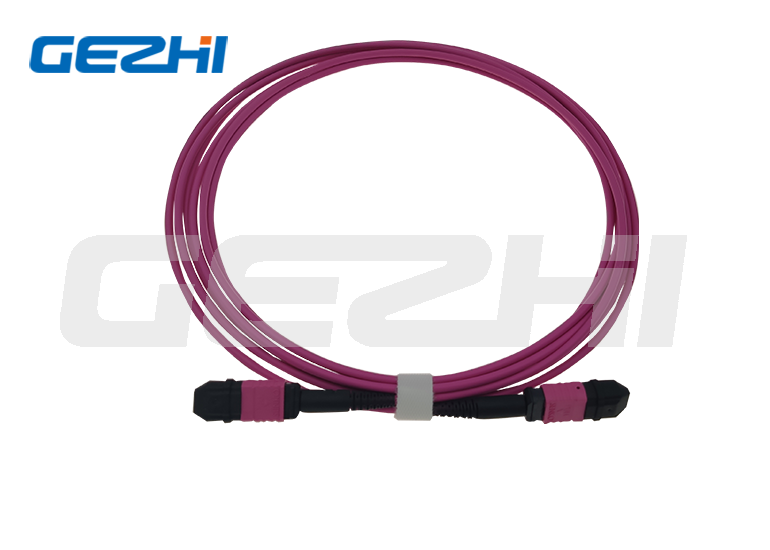

12 Fibre LC duplex (x6) to MTP (MPO) cables MPO OM4 Patch Cord
Product View
GEZHI offers P grade OM4 MPO fiber optic patch cords.Its comes with
multimode fiber appliies to high density in data center or
telecommunication systems.
Features
• Laser-Optimized multimode OM4 fiber
• Factory-terminated provide consistent quality, high performance
and reduce installation time
• 100% tested for low insertion loss performance and high back
reflection
• Optimized performance – available in elite MTP and discrete
premium connector upon request
Application
Specification
1. Custom Fiber Count
8 Fibers used for 40G/100G QSFP+/QSFP28 direct connection. | 12-144 Fibers used for 10G/40G/100G high-denisty structural fiber cabling. |
 |  |
2. Custom Polarity
There are also three different types of MPO cables – Type A, Type B
and Type C as below pictures:
3. Custom Connector
The MPO interfaces on active equipment are male (with pins), and to
avoid damage to the transceiver, MPO patch cords should be female
(without pins).
Male (with pins) The male connector is mated to the female side for adapters,
cassettes or panels connection. | Female (without pins) The female connector can be directly connected to transceivers or
other male connectors. |
Application Diagram
1. Custom Fiber Count
2. Custom Polarity
To properly send data over fiber cable, a link’s transmit signal
(Tx) at one end of the cable must match the corresponding receiver
(Rx) at the other end. And the role of polarity, which defines the
direction that the signal travels, is to make sure that this
correspondence is maintained. Fiber polarity is one area that seems
to cause a lot of confusion in our industry – especially when it
comes to multifiber MPO solutions used in parallel optic
applications.
MPO connectors also include a key on the top side of the connector
and a white dot on the side to indicate the location of Position 1.
The orientation of the key is critical when it comes to polarity.
There are also three different types of MPO cables – Type A, Type B
and Type C as below pictures:
3. Custom Connectors
About us
Our Certificates
Packing
AFQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
