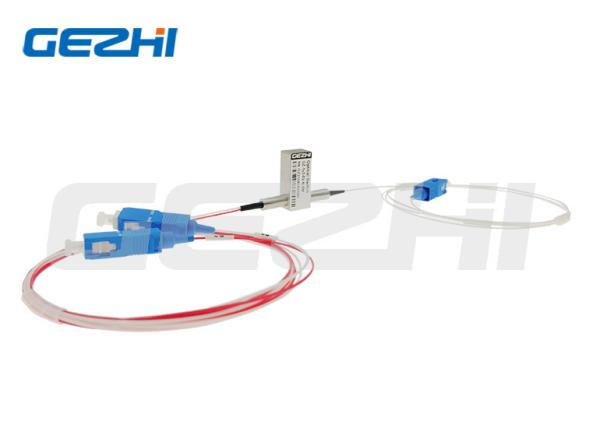

1*2 850/1260nm Mechanical Fiber Optic Switch Module
1x2 Optical Switches
This Optical switch configurate by 1x2 type with Three fibers and
two states which connects optical channels by redirecting an incoming optical signal
into a selected output fiber. Its working with Singlemode
wavelength 1260~1650nm or Multimode 850/1310nm. This is using a
opto-mechanical proprietary configuration and activated via an
electrical control signal. GEZHI 1x2 mechanical Fiber Optical
Switch offers ultra-high reliability and fast switching speed as
well as bi-directional performance. The 1x2 mechanical Fiber
Optical Switch are true switching solution for optical networking
applications.
Features Fail-Safe Latching Unmatched Low Cost
Low Optical Distortions Epoxy-Free Optical Path High Reliability | Applications Channel Blocking Configurable Add/Drop System Monitoring Instrumentation |
Specification
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260~1620(SM) | nm |
| Insertion Loss | ≤1.0 | dB |
| Wavelength Dependent Loss | ≤0.25 | dB |
| Polarization Dependent Loss | ≤0.05 | dB |
| Temperature Dependent Loss | ≤0.20 | dB |
| Return Loss | SM≥50 | dB |
| Cross Talk | SM≥55 | dB |
| Switch Time | ≤8 | ms |
| Repeatability | ≤±0.02 | dB |
| Durability | ≥107 | times |
| Operating Voltage | 3 or 5 | V |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | －20~＋70 | ℃ |
| Storage Temperature | －40~＋85 | ℃ |
| Optical Power | ≤500 | mW |
| Dimension | 27.0L×12.5W×8.4H | mm |
Pins
| Type | Optical Route | Electric Drive | State Sensor |
| 1×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 |
| Non-Latching | CUT | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P2 | V＋ | -- | -- | GND | Open | Close | Close | Open |
| Latching | CUT | -- | -- | GND | -- | Close | Open | Open | Close |
| P1-P2 | V＋ | GND | -- | -- | Open | Close | Close | Open |
Order Information
GZ-1×2-13/15
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S=SM
M=MM | 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others | 3=3V
5=5V | L=Latching
N=Non- Latching | 5=50/125
6=62.5/125
9=9/125
X=Others | 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others | 1=1m
2=1.5m
X=Others | 0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC X=Others |
