1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC
1x1 Optical Switches
1x1 Mechanical Optical Switch is used to turn on and turn off
optical signal. The 1x1 Mechanical Optical Switch is based on
Advanced Optoelectronic Integrated Technology. With the development
of optical communication, Optical Switch device is the key to a new
generation of all-optical network in near future.
Features Highly Stable & Reliable
Short switching time
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional | Applications System Monitor
Configurable OADM
Metropolitan Area Network
R&D in Laboratory |
Specification
item | value | Model Number | FC-1x1-13/15XX | Type | Other | Place of Origin | China | Manufacturer Location | Shenzhen | Brand Name | OEM | Use | FTTH | Warranty Time | 3year | Network | Wireless Lan, wifi, 4g | Type | Testers &Tools | Use | FTTH | Product name | 1x1 optical switch | Application | Telecommunication | Type | 1X1 | Color | Customized | Wavelength | 1310/1550nm | Warranty | 3Year | No. of Fiber | 2 |
|
Pins
| Type | Optical Route | Electric Drive | State Sensor |
| 1×1 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 |
| Non-Latching | CUT | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P2 | V＋ | -- | -- | GND | Open | Close | Close | Open |
| Latching | CUT | -- | -- | GND | -- | Close | Open | Open | Close |
| P1-P2 | V＋ | GND | -- | -- | Open | Close | Close | Open |
Order Information
GZ-1×1-13/15
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S=SM
M=MM | 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others | 3=3V
5=5V | L=Latching
N=Non- Latching | 5=50/125
6=62.5/125
9=9/125
X=Others | 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others | 1=1m
2=1.5m
X=Others | 0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC X=Others |
Optical Route

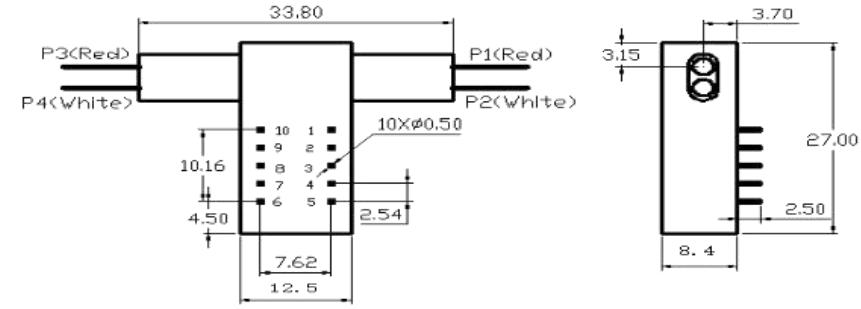

Mechanical Drawing
