FTTH High reliability stability 1x16 CATV Overlay Multiplexers with Rack-mount

Ask Lasest Price
Brand Name :	GEZHI or OEM
Model Number :	GZ-COM200x
Certification :	CE RoHS,ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100000Channel per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

FTTH High reliability stability 1x16 CATV Overlay Multiplexers with Rack-mount

Product Overview of CATV Overlay Multiplexers

FTTH High reliability stability 1x16 CATV Overlay Multiplexers with Rack-mount

CATV Overlay Multiplexers

GEZHI Photonics' CATV overlay Multiplexers have built-in Wavelength-division multiplexing (WDM). These products feature low insertion loss, high directivity. This product is optimized for networks where IP and RF is distributed via a single fibre to the curb/building/home.

The CATV overlay multiplexers is integrates Optical splitter and triple play filter WDM. Its supports multi-channel CATV signal transmission and satisies the up-dwon transmission of independent IP signal in each channel. It can meet the high broadband demand of voice, data, CATV and other integrated services. It is widely used in FTTX, CATV, P2P system, EPON/GPON systems etc.

Features & Applications of CATV Overlay Multiplexers

Features

High stability
Low insertion loss
High Reiliability

Applications

Fiber to the Home (FTTH) systems
EPON/GPON System
CATV System

Specifications of CATV Overlay Multiplexers

Parameter		Specification
Port		1x8	1x16	1x32	1x64
Insertion Loss (dB)	CATV IN	≤12	≤15.2	≤18.5	≤21.5
	DATA IN	≤1.0	≤1.0	≤1.0	≤1.0
Operating Wavelength (nm)	Common	1260~1620
	CATV IN	1540~1620
	DATA IN	1260~1360; 1460~1500
Isolation (dB)	CATV IN	≥30
	DATA IN	≥15
Directivity (dB)		＞50
Return Loss(dB)		＞45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-20~+75
Storage Temperature (℃)		-40~+85

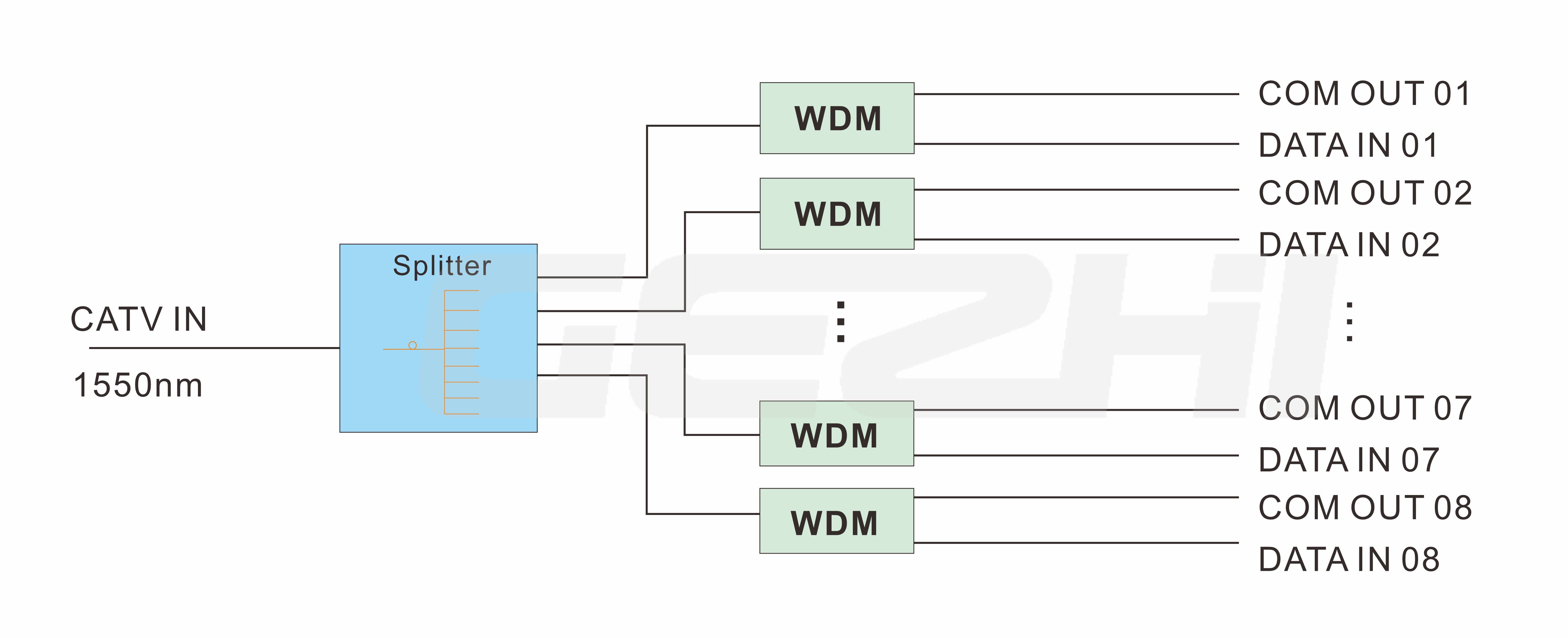

CATV Overlay Multiplexer diagram

Odering Information of CATV Overlay Multiplexers

Model

Configuration

Package type

Cable type

Fiber length

Connector

CATV

08WDM=08 Port COM & DATA IN

16WDM=32 Port COM & DATA IN

32WDM=64 Port COM & DATA IN

64WDM=64 Port COM & DATA IN

S=Specify

A1=ABS box 100x80x10mm

A2=ABS box 120x80x18mm

A3=ABS box 140x115x18mm

L1=LGX 129*29*130mm

L2=LGX insert in 2slot Rack

L4=LGX insert in 4slot Rack

R1=19" 1 U Rack

R2=2slot 19″1U Rack

R4=4slot 19″1U Rack

S=Specify

00=None

09=900um loose tube
20=2.0mm
30=3.0mm

S=Specify

00=None

05=0.5m

10=1.0m
S=Specify

00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC

MPO=MPO
S=Specify

FAQ

Q1:Can I have a sample order? What is your MOQ of CATV Overlay Multiplexers?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of CATV Overlay Multiplexers?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of CATV Overlay Multiplexers?
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
