Multi-Channel 40CH Filter DWDM Mux Demux Multiplexer With 1RU 19" Rackmount

Product Description:

Multi-channel 40CH Filter DWDM Mux Demux Multiplexer with 1RU 19" rackmount

40CH Filter DWDM Mux Demux

The 40CH DWDM with LC/UPC optical adapter interface. Standalone 1RU 19" rack packing Mux + Demux inside. ITU channel 21-59. The 1x40 Filter DWDM Mux Demux is a 40-channel standalone product in a compact 1RU frame that is capable of dense wavelength division multiplexing (DWDM) and demultiplexing. With its dense signal-to-fiber ratio, the 40CH Filter DWDM mux demux is ideal for long-haul transport of fiber optic signals. Use it to multiplex and transport a large number of signals of various formats — all over a dual fiber.

Features

◆High Channel Isolation

◆Thin-Film-Filter based
◆Low Polarization Dependent Loss

◆Multiplexer and demultiplexer capability in one frame

Applications

◆Dense WDM Systems

◆Access / Enterprise Networks
◆CATV Fiber Optic Links

◆Metro Networks

Technical Parameters

Parameter	Specifications			Unit	Comment
Parameter	Min	Max		Unit	Comment
Input Channel	1
Output Channel	48				32,40. 44 .48channels available
Channel Spacing	100			GHz
Reference Passband	-12.5		12.5	GHz
Wavelength Accuracy	-50		50	pm	Relative to ITU Grid
1dB Bandwidth	0.2(G) 0.4(F)			nm	Gussion or Flat top Type
3dB Bandwidth	0.4(G) 0.6(F)			nm	Gussion or Flat top Type
I.L			4.5	dB	Worst case in ITU passband
I.L UNI.			1	dB
Ripple			0.7	dB	Loss variation in ITU passband
PDL			0.5	dB	Max. value in ITU passband
Adjacent Crosstalk	25			dB	Worst case in ITU passband
Non-Adjacent Crosstalk	30			dB	Worst case in ITU passband
Total Crosstalk	22			dB	Cumulative crosstalk of all other channels
Return Loss	40			dB
Maximum Continuous Optical Power			250	mW	Maximum input optical power
Chromatic Dispersion(CD)	-20		+20	ps/nm
PMD			0.5	ps

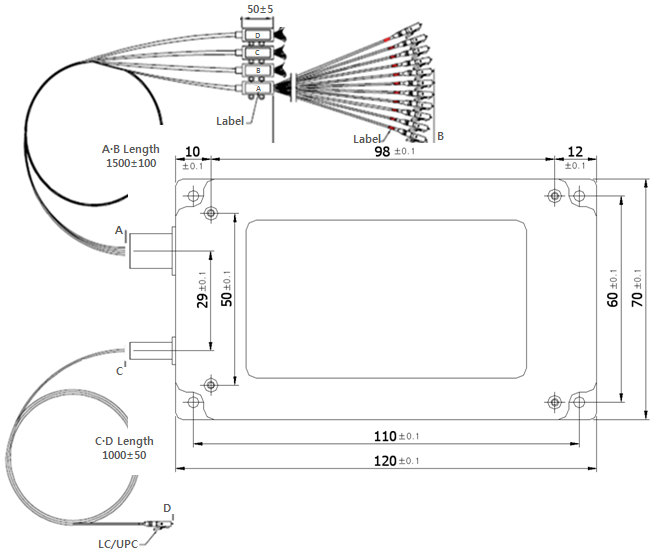

Mechanical Drawing

The packaged size is 120mm X 70mm X 10mm for Mux/Demux.

FAQ

Q1:Can I have a sample order? What is your MOQ of Filter DWDM?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with
our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of Filter DWDM ?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of Filter DWDM?
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your
requirements, design products label, logo, PN, SN, package.
